SKU: HMV20E-SKF

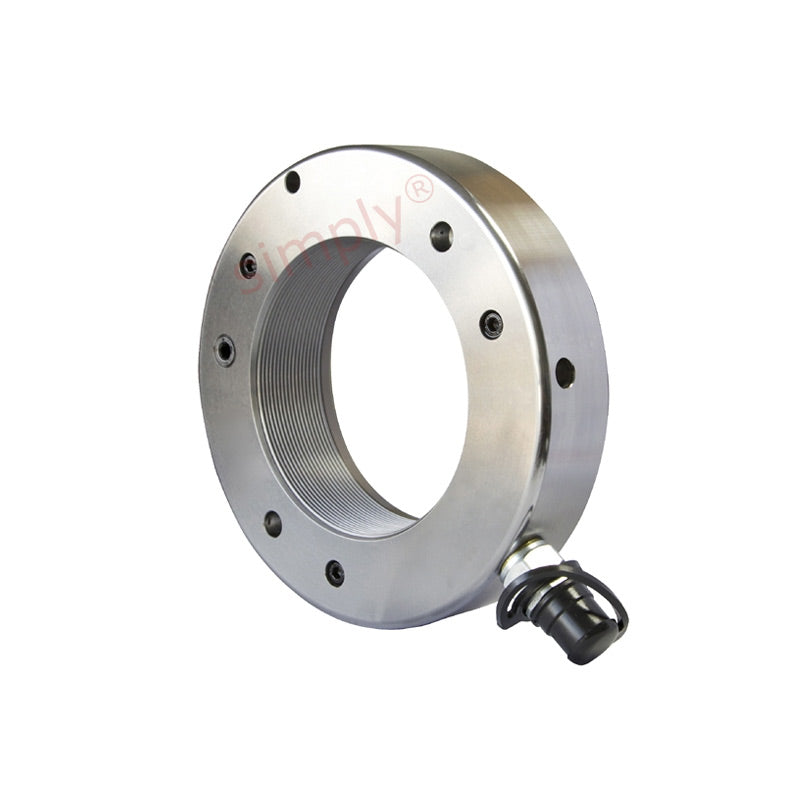

SKF HMV20E Metric Hydraulic Nut M100x2 Thread
SKF HMV20E Metric Hydraulic Nut M100x2 Thread
Regular price
€1.418,09
ex VAT
Regular price
Sale price
€1.418,09
ex VAT
In stock
Price Break
10+
€1.077,68
19+
€1.017,14
29+
€1.005,03
39+
€992,92
49+
€980,81
74+
€968,70
99+
€908,16
199+
€896,05
249+
€883,94
499+
€871,83
999+
€847,62
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | M100x2 |
|---|---|
| d1 | 100.5 |
| d2 | 158mm |
| d3 | 166mm |
| B | 38mm |
| B1 | 6mm |
| Permitted piston displacement | 5mm |
| Piston area | 5100mm2 |
