• Inverted Internal Circlip 2 inch Diameter
1 1

SKU: HOI-200

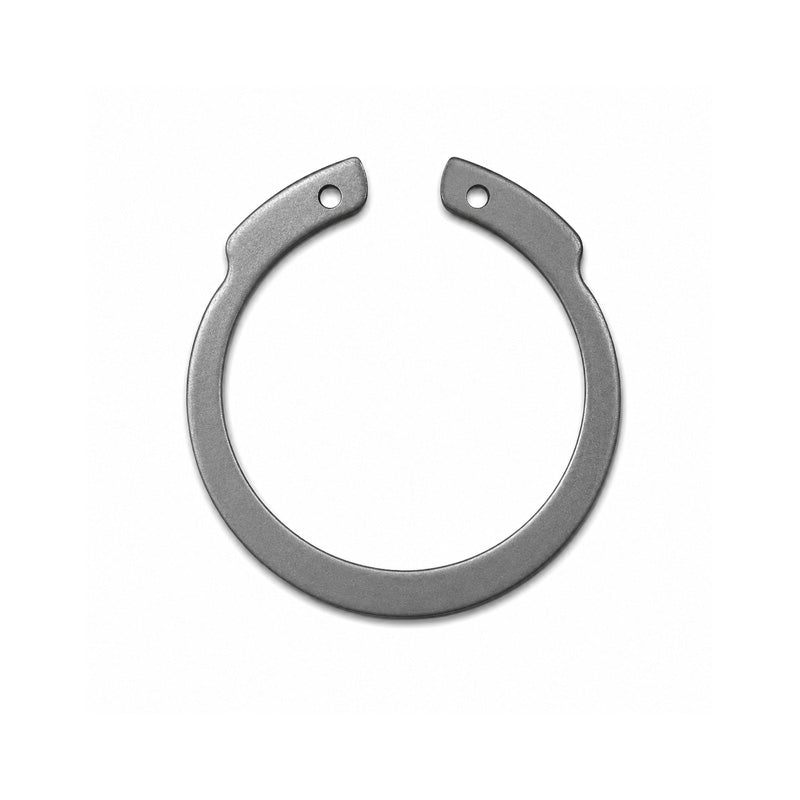

Inverted Internal Circlip 2 inch Diameter

Inverted Internal Circlip 2 inch Diameter

Equivalent to: HOI-200

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.

Brand / Quality:
Simply Circlips - Economy Quality
Technical
--- Housing Diameter
Dh - Imperial 2 inch
Dh - Metric 50.8mm
--- Groove Size
Dg - Diameter 2.122 inch
Diameter Tolerance +.005 to -.005*
W - Width 0.068 inch
Width Tolerance +.004 to -.000
d - Depth 0.061 inch
--- Circlip Size and Weight
Df - Free Diameter 2.16 inch
Free Diameter Tolerance +.020 to -.013
T - Thickness 0.062 inch
Thickness Tolerance 0.003
Weight (1000pcs) lbs 17.4 lbs
--- Clearance Diameter
L1 - Compressed in Housing 1.55 inch
L2 - Released in Groove 1.67 inch
--- Thrust Loads (Square Corner Abutment)
Pr - Ring Safety Factor of 4 9896 lbs
Pg - Groove Safety Factor of 2 4300 lbs
--- Maximum Section (Including Lug)
S max - Maximum Section 0.208 inch
Maximum Section Tolerance 0.007
--- Minimum Section
S max - Minimum Section 0.1 inch
Minimum Section Tolerance 0.007
--- Hole Diameter
R - Hole Diameter 0.076 inch
Hole Diameter Tolerance +.015 to -.002
--- Gap Width (Ring in Groove)
G min - Gap Width 0.48 inch
--- Allowable Corner (Radius and Chamfers)
R max - Allowable Corner for Radius 0.118 inch
Ch max - Allowable Corner for Chamfers 0.074
--- Maximum Load (with R max or Ch max)
P"r - Maximum Load 2900
--- Edge Margin
Y - Edge Margin 0.183 inch
