SKU: HOI-334

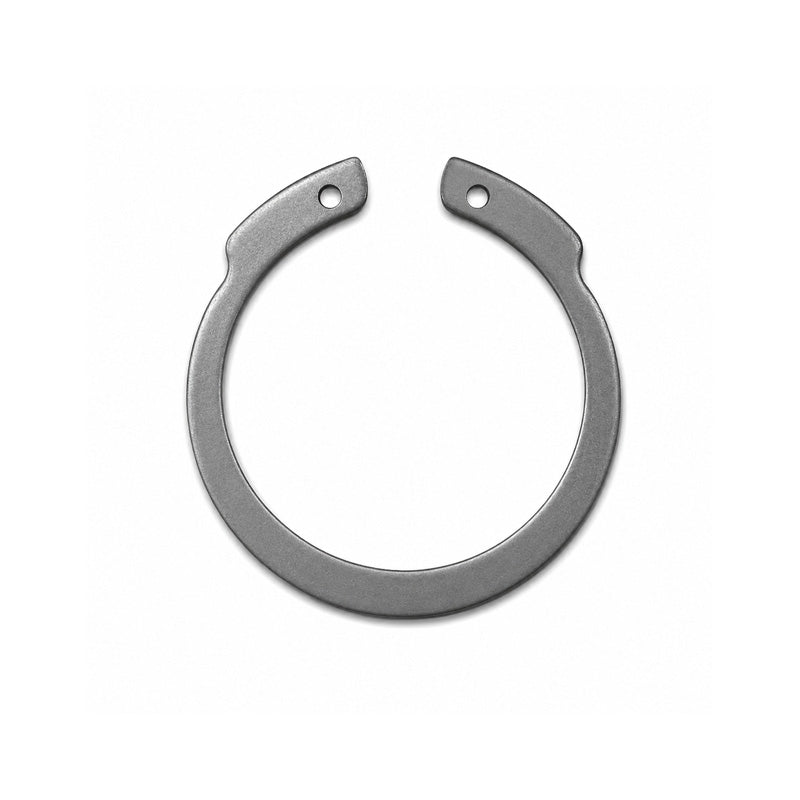

Inverted Internal Circlip 3-11/32 inch Diameter
Inverted Internal Circlip 3-11/32 inch Diameter
Equivalent to: HOI-334
Out of stock
Description
Description
Inverted Internal Circlips: These circlips are axially assembled and suitable for bores with grooves.
This circlip has a large free diameter and gap width, consequently, it fits more tightly into the groove and provides higher and more uniform thrust load capacity. The lugs on these circlips are "reversed" and have a reduced distance between the lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Circlips - Economy Quality
Technical
Technical
| --- | Housing Diameter |
|---|---|
| Dh - Imperial | 3.346 inch = 3-11/32 inch |
| Dh - Metric | 85mm |
| --- | Groove Size |
| Dg - Diameter | 3.546 inch |
| Diameter Tolerance | +.006 to -.006* |
| W - Width | 0.12 inch |
| Width Tolerance | +.005 to -.000 |
| d - Depth | 0.1 inch |
| --- | Circlip Size and Weight |
| Df - Free Diameter | 3.611 inch |
| Free Diameter Tolerance | +.030 to -.020 |
| T - Thickness | 0.109 inch |
| Thickness Tolerance | 0.003 |
| Weight (1000pcs) lbs | 75.6 lbs |
| --- | Clearance Diameter |
| L1 - Compressed in Housing | 2.67 inch |
| L2 - Released in Groove | 2.87 inch |
| --- | Thrust Loads (Square Corner Abutment) |
| Pr - Ring Safety Factor of 4 | 29029 lbs |
| Pg - Groove Safety Factor of 2 | 11700 lbs |
| --- | Maximum Section (Including Lug) |
| S max - Maximum Section | 0.321 inch |
| Maximum Section Tolerance | 0.008 |
| --- | Minimum Section |
| S max - Minimum Section | 0.155 inch |
| Minimum Section Tolerance | 0.008 |
| --- | Hole Diameter |
| R - Hole Diameter | 0.125 inch |
| Hole Diameter Tolerance | +.015 to -.002 |
| --- | Gap Width (Ring in Groove) |
| G min - Gap Width | 0.81 inch |
| --- | Allowable Corner (Radius and Chamfers) |
| R max - Allowable Corner for Radius | 0.177 inch |
| Ch max - Allowable Corner for Chamfers | 0.111 |
| --- | Maximum Load (with R max or Ch max) |
| P"r - Maximum Load | 9000 |
| --- | Edge Margin |
| Y - Edge Margin | 0.3 inch |
