SKU: HRC280F-MB
Major Branded HRC280F-MB HRC Coupling Single Flange Inner Facing Taper Bore Max Bush Bore 100mm / 4 inch
- Regular price
- €94.39 ex VAT
- Sale price
- €94,39
- Regular price
-
Quantity Price Breaks
Major Branded HRC280F-MB HRC Coupling Single Flange Inner Facing Taper Bore Max Bush Bore 100mm / 4 inch
- Regular price
- €94.39 ex VAT
- Sale price
- €94,39
- Regular price
-
Description

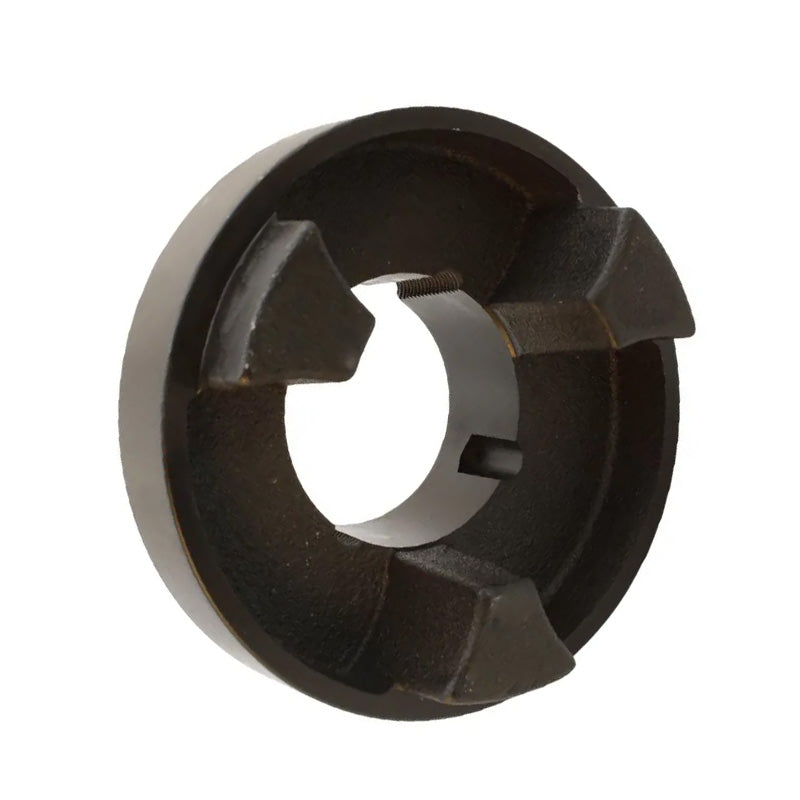

Branded HRC Coupling Single Flange Inner Facing Taper Bore: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
These coupling flanges have taper bores to accept tapered locking bushes, these will need to be purchased separately and are available with a wide range of standard bores to suit your application. The taper bores are inner facing where the larger diameter of the taper is on the same side of the coupling as the rubber drive element.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Technical

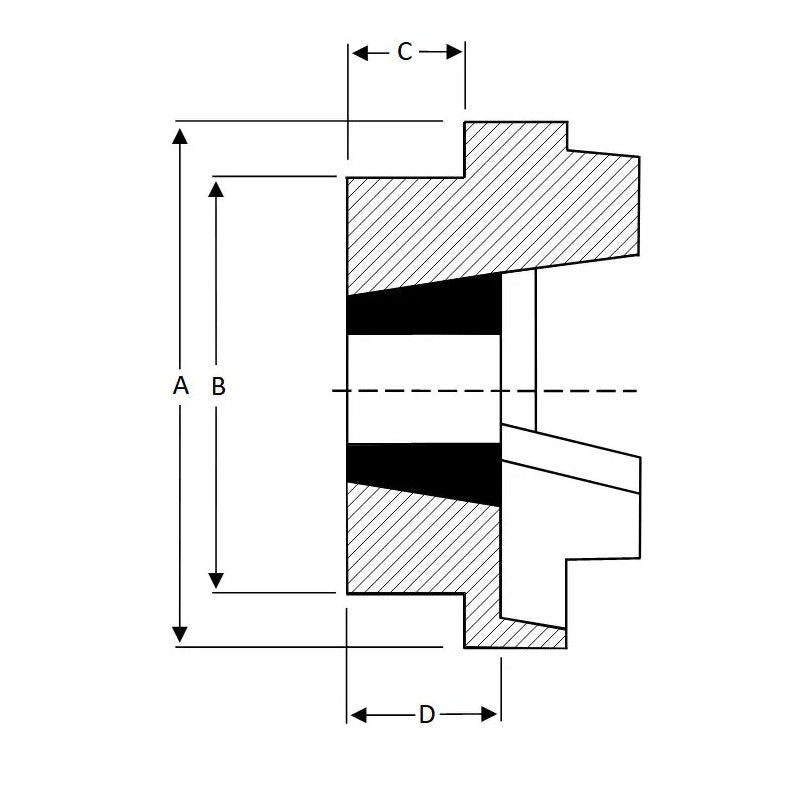

| Nominal Torque | = | 3150 Nm |
| Overall Diameter A | = | 275mm |
| Hub Diameter B | = | 206mm |
| Assembled Length F | = | 105.5mm |
| Insert Bore Dia E | = | 119mm |
| Insert Width G | = | 74.5mm |
| Parallel Misalignment | = | 0.5mm |
| Weight | = | 20kg |
| L width | = | 207.5mm< |
| sup> | = | 1< |
| /sup> | = | |
| Bush Size | = | 3525 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+3525" |
| > | = | [Click Here]< |
| /a> | = | |
| Max Bore | = | 100mm |
| Max Bore | = | 4 inch |
| Shoulder Width D | = | 51mm |
| Hub Width C | = | 66.5mm |
| Max Power at 100 rpm | = | 33 kW |
| Max Power at 200 rpm | = | 65 kW |
| Max Power at 400 rpm | = | 132 kW |
| Max Power at 600 rpm | = | 198 kW |
| Max Power at 720 rpm | = | 238 kW |
| Max Power at 800 rpm | = | 264 kW |
| Max Power at 960 rpm | = | 317 kW |
| Max Power at 1200 rpm | = | 396 kW |
| Max Power at 1440 rpm | = | 475 kW |
| Max Power at 1600 rpm | = | 528 kW |
| Max Power at 1800 rpm | = | 594 kW |
| Max Power at 2000 rpm | = | 660 kW |
| Max Power at 2200 rpm | = | 726 kW |
| Nominal Torque (Nm) | = | 3150 Nm |
| Max Torque | = | 7200 Nm |
