SKU: HRC90B+HRC90B+HRC90I-FRAS-MB
Major Branded HRC90B Coupling Assembly Pilot Bored Nominal 10mm Max Bore 42mm with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €33.37 ex VAT
- Sale price
- €33,37
- Regular price
-
Quantity Price Breaks
Major Branded HRC90B Coupling Assembly Pilot Bored Nominal 10mm Max Bore 42mm with Fire Resistant Antistatic (F.R.A.S) Insert
- Regular price
- €33.37 ex VAT
- Sale price
- €33,37
- Regular price
-
Description
Branded HRC Coupling Assembly Pilot Bored with Fire Resistant Antistatic (F.R.A.S) Insert: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.

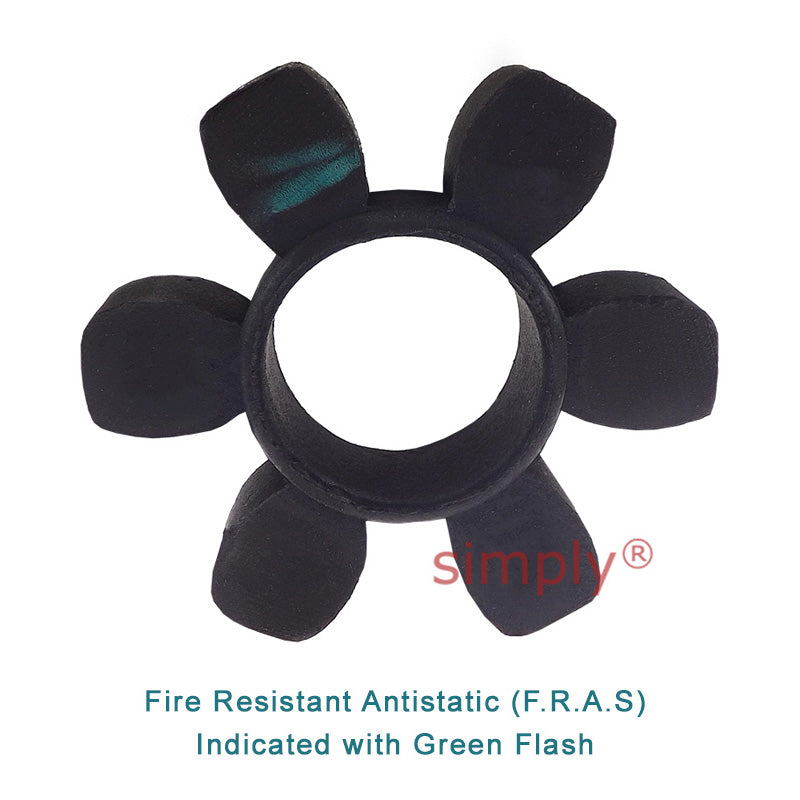

Supplied as a complete coupling assembly. The assembly comprises of 2 coupling flanges and a matching chloroprene rubber fire resistance and anti-static properties (F.R.A.S) insert (Indicated with a Green Flash). The coupling is the B type which has pilot bores and will require machining to your application requirements.
Technical
| Nominal Torque | = | 80 Nm |
| Overall Diameter A | = | 85mm |
| Hub Diameter B | = | 70mm |
| Assembled Length F | = | 30.5mm |
| Insert Bore Dia E | = | 32mm |
| Insert Width G | = | 22.5mm |
| Parallel Misalignment | = | 0.3mm |
| Assembly Weight | = | 2.223kg |
| L width | = | 82.5mm< |
| sup> | = | 3< |
| /sup> | = | |
| B Type - Max Bore | = | 42mm |
| B Type - Pilot Bore | = | 10mm |
| B Type - Keyway Screw Size | = | M6mm |
| B Type - Shoulder Width D | = | 26mm |
| B Type - Hub Width C | = | 30.5mm |
| Max Power at 100 rpm | = | 0.84 kW |
| Max Power at 200 rpm | = | 1.68 kW |
| Max Power at 400 rpm | = | 3.35 kW |
| Max Power at 600 rpm | = | 5.03 kW |
| Max Power at 720 rpm | = | 6.03 kW |
| Max Power at 800 rpm | = | 6.7 kW |
| Max Power at 960 rpm | = | 8.04 kW |
| Max Power at 1200 rpm | = | 10.1 kW |
| Max Power at 1440 rpm | = | 12.1 kW |
| Max Power at 1600 rpm | = | 13.4 kW |
| Max Power at 1800 rpm | = | 15.1 kW |
| Max Power at 2000 rpm | = | 16.8 kW |
| Max Power at 2200 rpm | = | 18.4 kW |
| Max Power at 2400 rpm | = | 20.1 kW |
| Max Power at 2600 rpm | = | 21.8 kW |
| Max Power at 2880 rpm | = | 24.1 kW |
| Max Power at 3000 rpm | = | 25.1 kW |
| Max Power at 3600 rpm | = | 30.1 kW |
| Nominal Torque (Nm) | = | 80 Nm |
| Max Torque | = | 180 Nm |
