SKU: HRC90H-MB

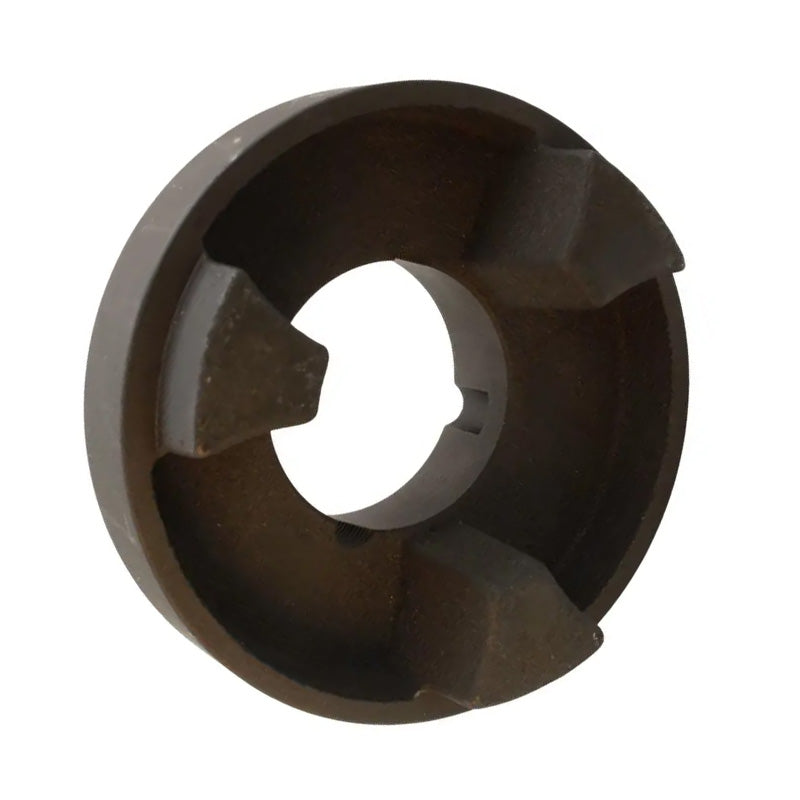

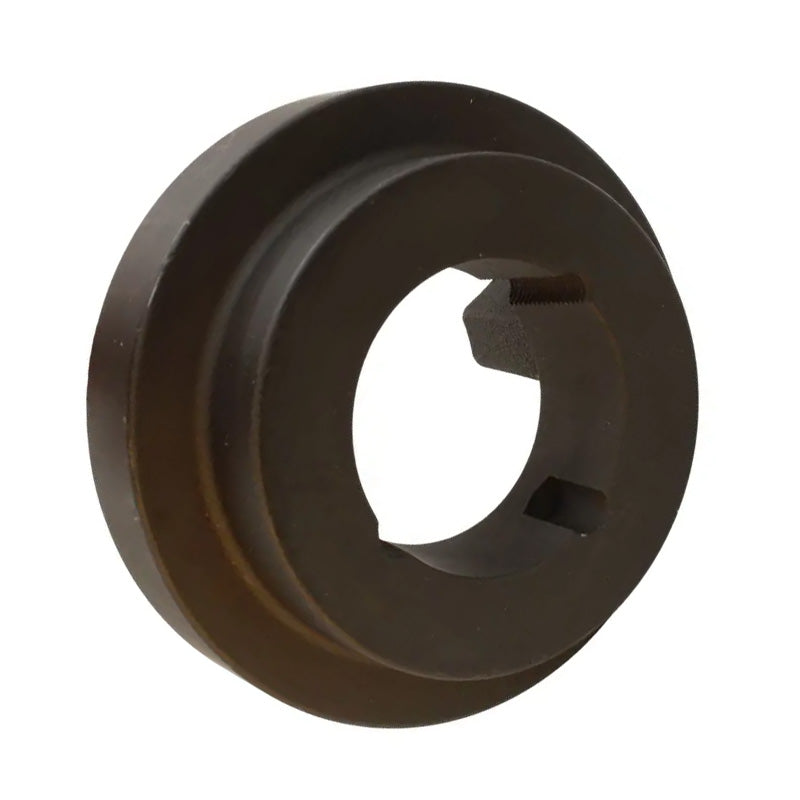

Major Branded HRC90H-MB HRC Coupling Single Flange Outer Facing Taper Bore Max Bush Bore 28mm / 1-1/8 inch
- Regular price
- €9.82 ex VAT
- Sale price
- €9,82
- Regular price
-
Quantity Price Breaks
Major Branded HRC90H-MB HRC Coupling Single Flange Outer Facing Taper Bore Max Bush Bore 28mm / 1-1/8 inch
- Regular price
- €9.82 ex VAT
- Sale price
- €9,82
- Regular price
-
Description
Branded HRC Coupling Single Outer Facing Taper Bore: These semi-elastic couplings are designed for general use purpose use and they permit quick and easy assembly by means for a tapered locking bush fixing. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
These coupling flanges have taper bores to accept tapered locking bushes, these will need to be purchased separately and are available with a wide range of standard bores to suit your application. The taper bores are outer facing where the larger diameter of the taper is on the opposite side of the coupling to the rubber drive element.
This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling assembly.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Technical

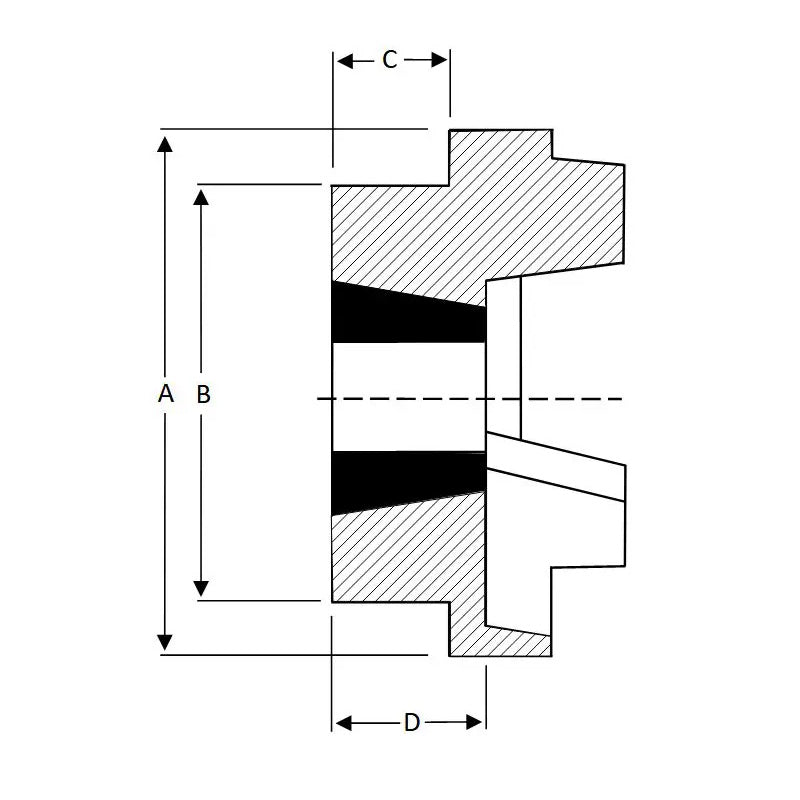

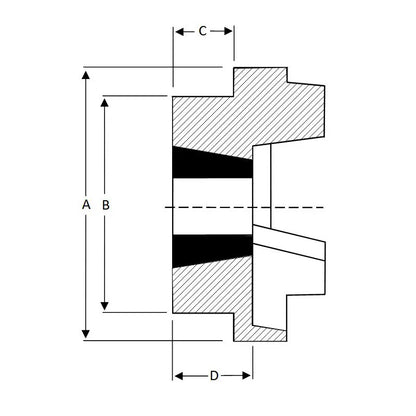

| Nominal Torque | = | 80 Nm |
| Overall Diameter A | = | 85mm |
| Hub Diameter B | = | 70mm |
| Assembled Length F | = | 30.5mm |
| Insert Bore Dia E | = | 32mm |
| Insert Width G | = | 22.5mm |
| Parallel Misalignment | = | 0.3mm |
| Weight | = | 0.71kg |
| L width | = | 69.5mm< |
| sup> | = | 1< |
| /sup> | = | |
| Bush Size | = | 1108 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+1108" |
| > | = | [Click Here]< |
| /a> | = | |
| Max Bore | = | 28mm |
| Max Bore | = | 1-1/8 inch |
| Shoulder Width D | = | 19.5mm |
| Hub Width C | = | 23.5mm |
| Max Power at 100 rpm | = | 0.84 kW |
| Max Power at 200 rpm | = | 1.68 kW |
| Max Power at 400 rpm | = | 3.35 kW |
| Max Power at 600 rpm | = | 5.03 kW |
| Max Power at 720 rpm | = | 6.03 kW |
| Max Power at 800 rpm | = | 6.7 kW |
| Max Power at 960 rpm | = | 8.04 kW |
| Max Power at 1200 rpm | = | 10.1 kW |
| Max Power at 1440 rpm | = | 12.1 kW |
| Max Power at 1600 rpm | = | 13.4 kW |
| Max Power at 1800 rpm | = | 15.1 kW |
| Max Power at 2000 rpm | = | 16.8 kW |
| Max Power at 2200 rpm | = | 18.4 kW |
| Max Power at 2400 rpm | = | 20.1 kW |
| Max Power at 2600 rpm | = | 21.8 kW |
| Max Power at 2880 rpm | = | 24.1 kW |
| Max Power at 3000 rpm | = | 25.1 kW |
| Max Power at 3600 rpm | = | 30.1 kW |
| Nominal Torque (Nm) | = | 80 Nm |
| Max Torque | = | 180 Nm |
