• TL144-8M-30 - 8mm Pitch 144 Tooth Flangeless HTD Type Cast Iron Taper Bore Timing Pulley for 30mm Wide Belts
1 1

SKU: HT144-8M-30

TL144-8M-30 - 8mm Pitch 144 Tooth Flangeless HTD Type Cast Iron Taper Bore Timing Pulley for 30mm Wide Belts

TL144-8M-30 - 8mm Pitch 144 Tooth Flangeless HTD Type Cast Iron Taper Bore Timing Pulley for 30mm Wide Belts
€135,46 ex VAT
€135,46 ex VAT
Sale Sold out

Equivalent to: 1448M30

In stock

Price Break
3+ €102,94
5+ €97,16
9+ €96,00
19+ €94,85
49+ €93,69
74+ €92,53
99+ €86,75
199+ €85,59
249+ €84,44
499+ €83,28
999+ €80,97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
E06OF524XL
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
144
Pitch:
8mm
Item Type:
Taper Bore Pulley
Maximum Belt Width:
30mm
Technical

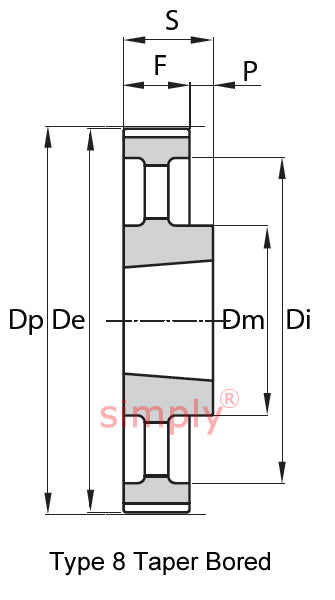

--- Pulley Dimensions
Pitch 8mm
Number of Teeth 144
Type 8 Taper Bore
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=2517+tapered+locking+bush ">2517 Click Here</a>
Dp 366.69mm
De 365.32mm
Dm 125mm
Di 336mm
F 38mm
S 45mm
P 7mm
Weight 9.00kg
