• TL72-5M-15 - 5mm Pitch 72 Tooth Flangeless HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts
1 1

SKU: HT72-5M-15

TL72-5M-15 - 5mm Pitch 72 Tooth Flangeless HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts

TL72-5M-15 - 5mm Pitch 72 Tooth Flangeless HTD Type Steel Taper Bore Timing Pulley for 15mm Wide Belts
€35,12 ex VAT
€35,12 ex VAT
Sale Sold out

Equivalent to: 725M15

In stock

Price Break
3+ €26,17
5+ €24,70
9+ €24,40
19+ €24,11
49+ €23,81
74+ €23,52
99+ €22,05
199+ €21,76
249+ €21,46
499+ €21,17
999+ €20,58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
E06OF524XL
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
72
Pitch:
5mm
Item Type:
Taper Bore Pulley
Maximum Belt Width:
15mm
Technical

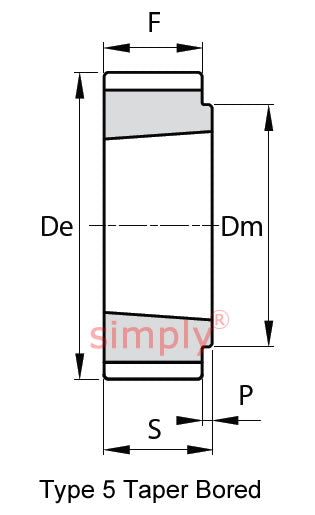

--- Pulley Dimensions
Pitch 5mm
Number of Teeth 72
Type 5 Taper Bore
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=1610+tapered+locking+bush ">1610 Click Here</a>
Dp 114.59mm
De 113.45mm
Dm 92mm
F 20.5mm
S 25mm
P 3mm
Weight 1.20kg
