SKU: HYDRA-SCHP-8-12-SNR

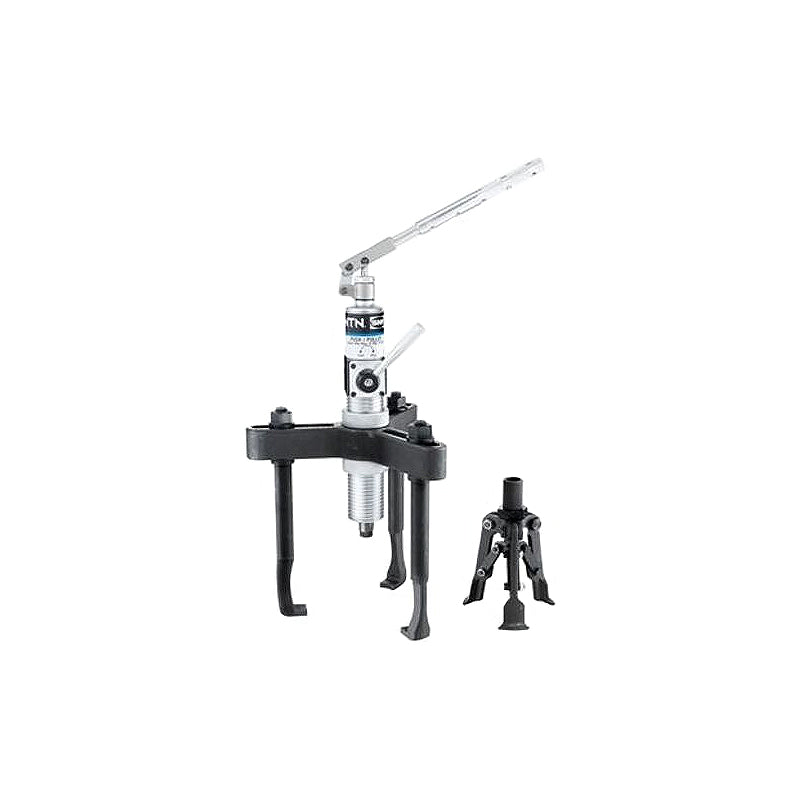

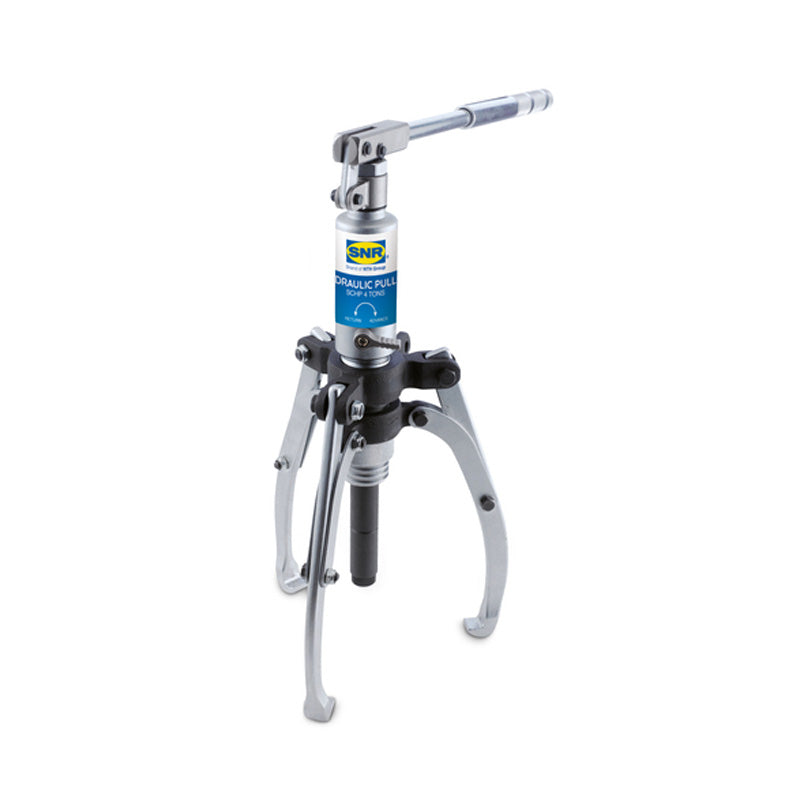

SNR SCHP 8-12 Self-Centring Hydraulic Push and Puller - 8000kg to 120000 kg - Allow 2-3 Days
SNR SCHP 8-12 Self-Centring Hydraulic Push and Puller - 8000kg to 120000 kg - Allow 2-3 Days
Regular price
€3.238,69
ex VAT
Regular price
Sale price
€3.238,69
ex VAT
In stock
Price Break
3+
€2.461,25
5+
€2.322,98
9+
€2.295,32
19+
€2.267,67
49+
€2.240,01
74+
€2.212,36
99+
€2.074,09
199+
€2.046,43
249+
€2.018,78
499+
€1.991,12
999+
€1.935,81
Quantity
Couldn't load pickup availability
Description
Description
SNR SCHP Hydraulic Push and Puller: This is a self-centering push and puller for the safe and effective mounting and dismounting of applications and parts.
Benefits: High-quality and Multi-functional.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

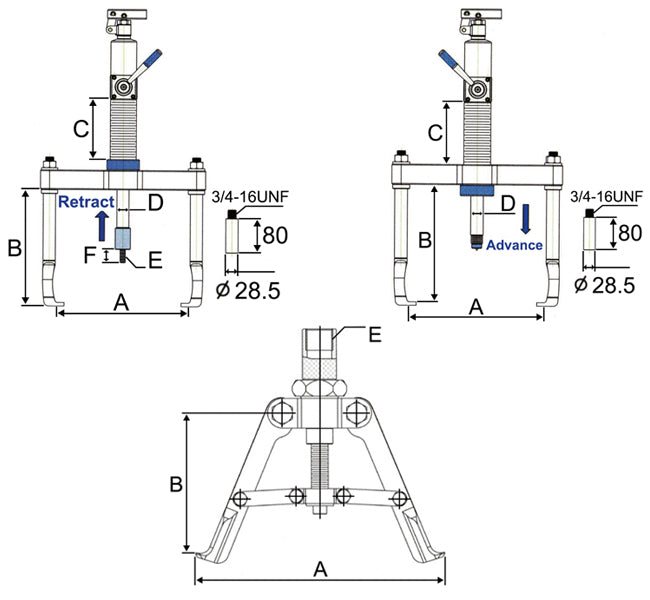

| --- | Thrust |
|---|---|
| Capacity | 8000kg |
| Max Reach | 130mm |
| Min Spread A | 44mm |
| Max Spread A | 280mm |
| B | 270mm |
| C | 140mm |
| D | 28mm |
| E | M12-P1.75 |
| F | 30mm |
| --- | Extraction (External) |
| Capacity | 12000kg |
| Max Reach | 240mm |
| Min Spread A | 85mm |
| Max Spread A | 300mm |
| B | 260mm |
| C | 140mm |
| D | 28mm |
| --- | Extraction (Internal) |
| Capacity | 8000kg |
| Max Reach | 105mm |
| Min Spread A | 110mm |
| Max Spread A | 210mm |
| B | 130mm - 150mm |
| E | 1 inch - 12UNF |
| --- | Weight |
| Mass | 19.5kg |
