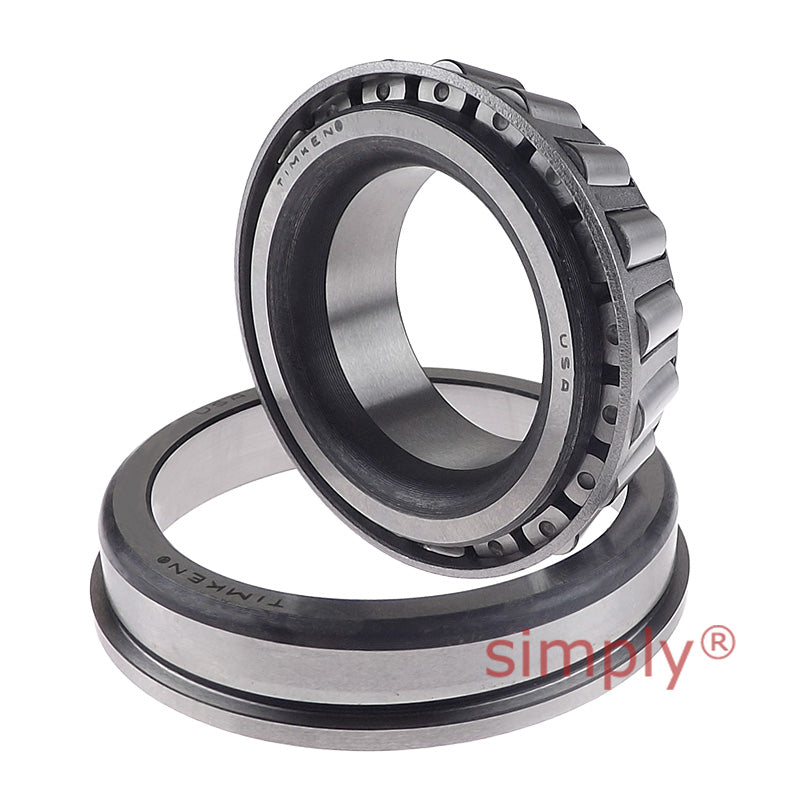

Timken JP7049/JP7010B TSF Single-Row Taper Roller Bearing 2.7559x4.3307x0.8268 inch
Timken JP7049/JP7010B TSF Single-Row Taper Roller Bearing 2.7559x4.3307x0.8268 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 21mm
Technical
Technical
| d | 70mm = 2.7559 inch |
|---|---|
| D | 110mm = 4.3307 inch |
| T1 | 8.5mm = 0.3346 inch |
| Dynamic (1) C1 | 84800N |
| Factors (5) e | 0.46 |
| Factors (5) Y | 1.3 |
| Dynamic (2) C90 | 22000N |
| Dynamic (2) Ca90 | 17400N |
| Factors (5) K | 1.27 |
| Static Co | 112000N |
| Bearing B | 20mm = 0.7874 inch |
| Bearing C | 15.5mm = 0.6102 inch |
| Bearing a(3) | 2.5mm = 0.1 inch |
| Bearing D1 | 116mm = 4.5669 inch |
| Bearing C2 | 3mm = 0.1181 inch |
| Shaft max shaft fillet radius R(4) | 2mm = 0.08 inch |
| Shaft backing shoulder diameter da | 76mm = 2.99 inch |
| Shaft backing shoulder diameter db | 80mm = 3.15 inch |
| Housing backing shoulder diameter Da | 105.5mm = 4.15 inch |
| G1 | 51.1 |
| G2 | 30.9 |
| Cg | 0.0995 |
