SKU: JSC039SS316-JUB
JSC039SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
JSC039SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
Regular price
€10,35
ex VAT
Regular price
Sale price
€10,35
ex VAT
Low stock
Price Break
3+
€8,75
5+
€8,40
9+
€8,22
19+
€7,96
49+
€7,78
74+
€7,34
99+
€6,19
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Quantity
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 36mm
- Max Adjustment Range:
- 39mm
Technical
Technical

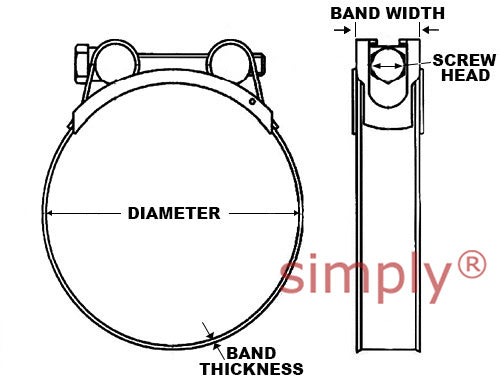

| Adjustment Range | 36mm - 39mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
