SKU: JSC139MS-JUB

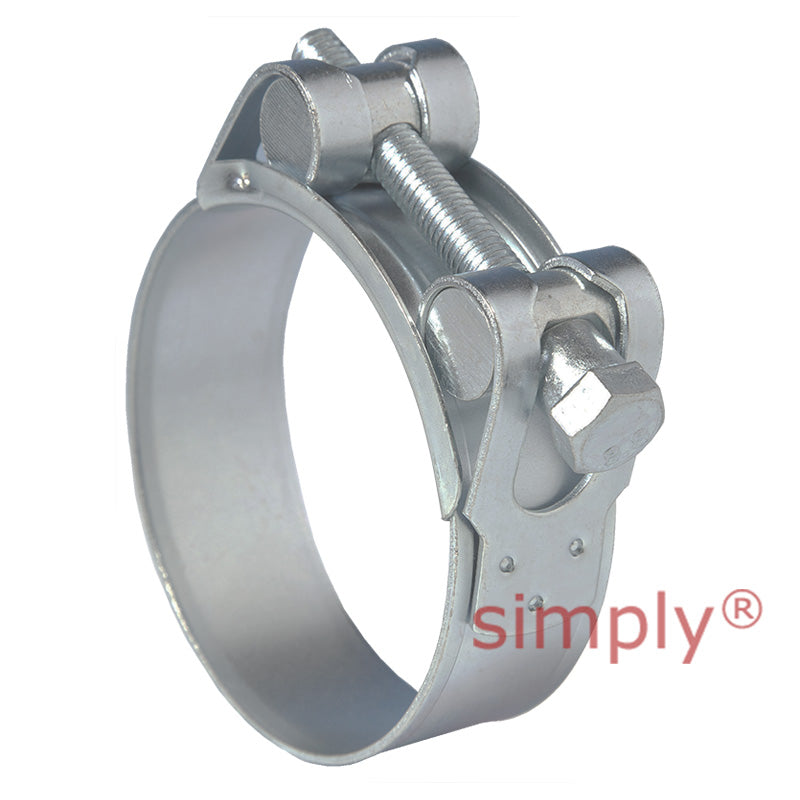

JSC139MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 131mm - 139mm Band Width 25mm
- Regular price
- €8.42 ex VAT
- Sale price
- €8,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€7.49
5
€7.07
9
€6.99
19
€6.90
49
€6.82
74
€6.74
99
€6.32
199
€6.23
249
€6.15
499
€6.06
999
€5.89
SKU:
JSC139MS-JUB
JSC139MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 131mm - 139mm Band Width 25mm
- Regular price
- €8.42 ex VAT
- Sale price
- €8,42
- Regular price
-
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 131mm - 139mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.5mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
