SKU: JSC226MS-JUB

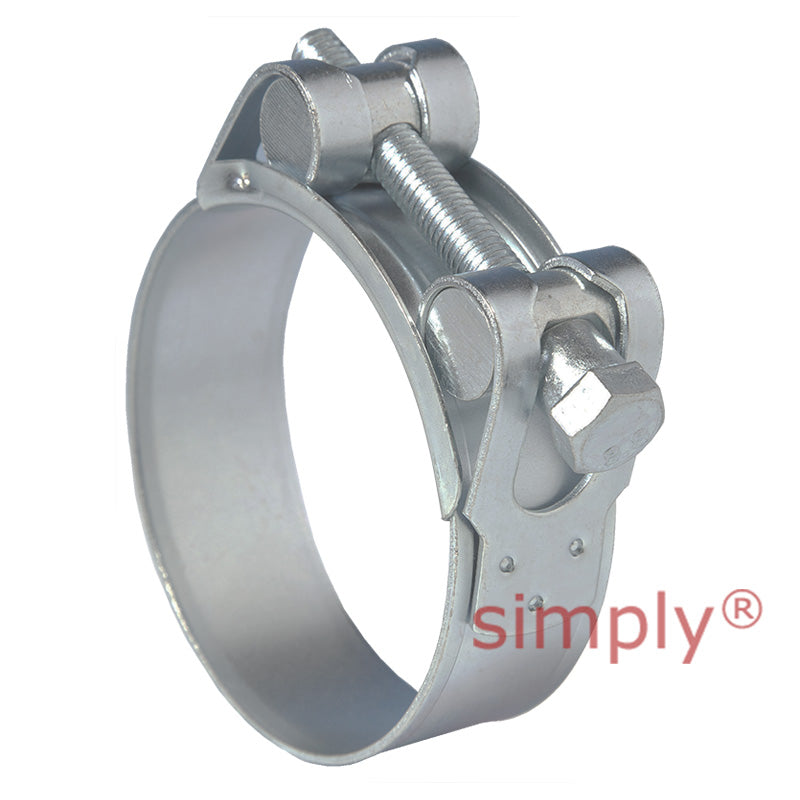

JSC226MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 214mm - 226mm Band Width 25mm
- Regular price
- €10.48 ex VAT
- Sale price
- €10,48
- Regular price
-
Not in stock
Quantity Price Breaks
3
€9.33
5
€8.80
9
€8.70
19
€8.59
49
€8.49
74
€8.38
99
€7.86
199
€7.76
249
€7.65
499
€7.55
999
€7.34
SKU:
JSC226MS-JUB
JSC226MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 214mm - 226mm Band Width 25mm
- Regular price
- €10.48 ex VAT
- Sale price
- €10,48
- Regular price
-
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 214mm - 226mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.8mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
