• NTN K16X22X12 Needle Roller and Cage Assembly 16x22x12mm
1 1

SKU: K16X22X12-NTN

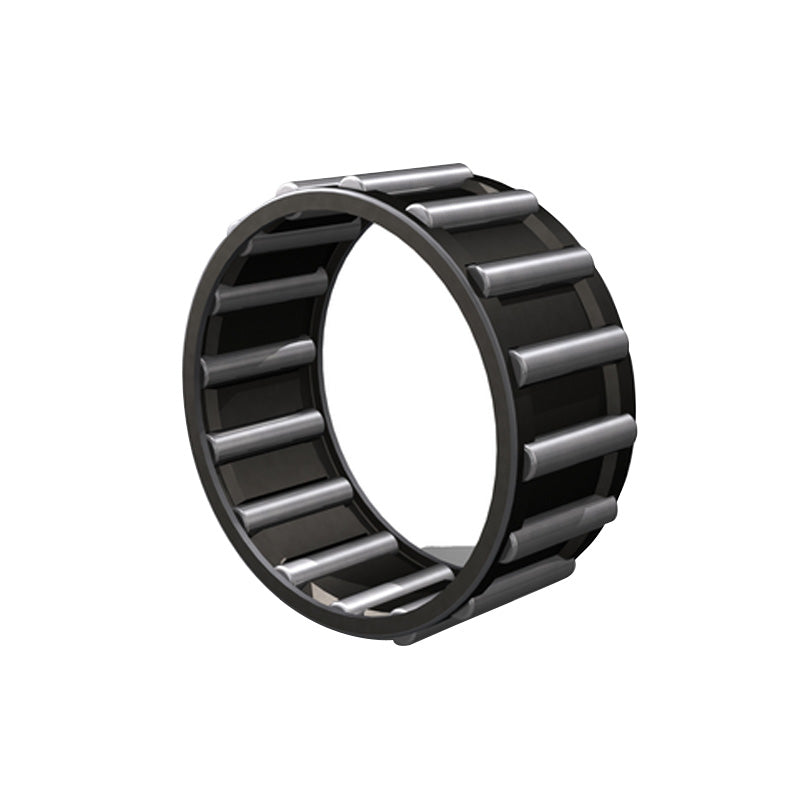

NTN K16X22X12 Needle Roller and Cage Assembly 16x22x12mm

NTN K16X22X12 Needle Roller and Cage Assembly 16x22x12mm
€7,85 ex VAT
€7,85 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,96
4+ €5,63
9+ €5,56
19+ €5,49
49+ €5,43
99+ €5,36
499+ €5,03
999+ €4,96
1999+ €4,89
2999+ €4,82
4999+ €4,69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JFD93YB3TZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
16mm
Outside Diameter:
22mm
Width:
12mm
Technical
Fw - Inside diameter 16mm
Ew - Outside diameter 22mm
Bc - Cage width 12mm
Cr - Dynamic load rating 11.7 kN
C0r - Static load rating 12.5 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
