SKU: K81112L1-NTN

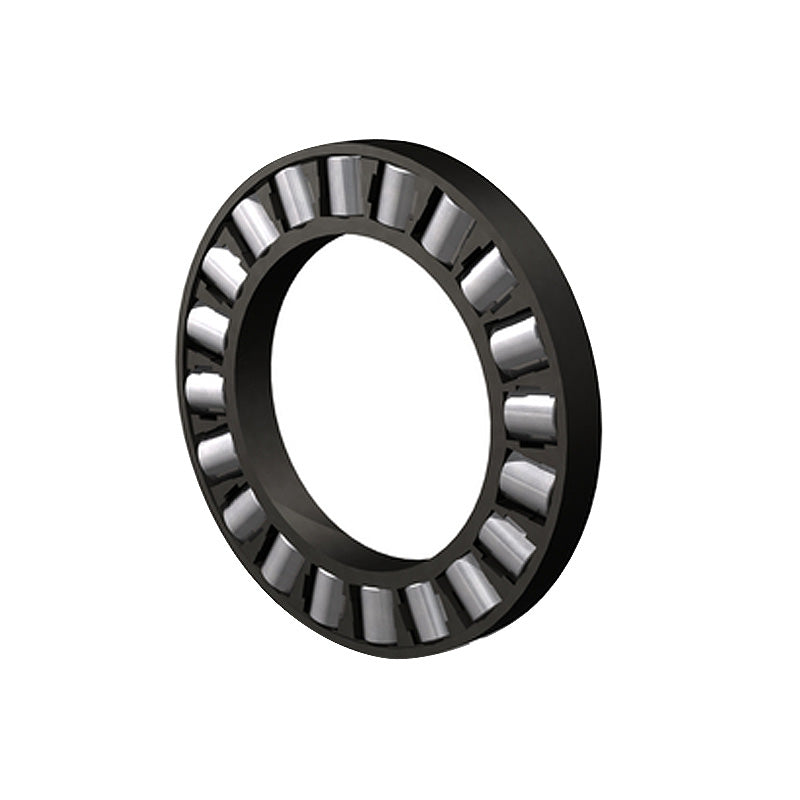

NTN K81112L1 Needle Roller Cage Only 60x85x7.5mm - Allow 2-3 Days
NTN K81112L1 Needle Roller Cage Only 60x85x7.5mm - Allow 2-3 Days
Out of stock
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 7.5mm
Technical
Technical

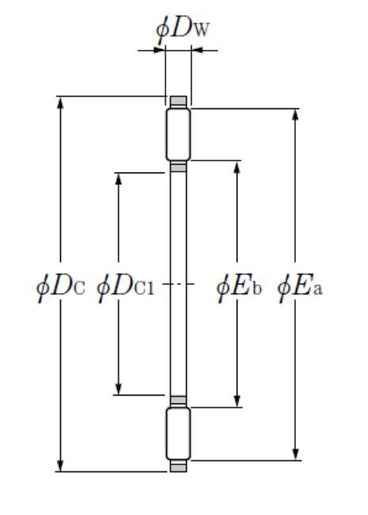

| Dc1 - Inside diameter | 60mm |
|---|---|
| Dc - Outside diameter | 85mm |
| Dw - Roller Width | 7.5mm |
| WS inner ring reference | WS81112 |
| GS outer ring reference | GS81112 |
| Ea - Rollers reference outer diameter | 80.1mm |
| Eb - Rollers reference inner diameter | 63.7mm |
| Ca - Dynamic axial load rating | 69 kN |
| C0a - Static axial load rating | 215 kN |
| Grease lubrication limit speed | 830 tr/min |
| Oil lubrication limit speed | 3300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
