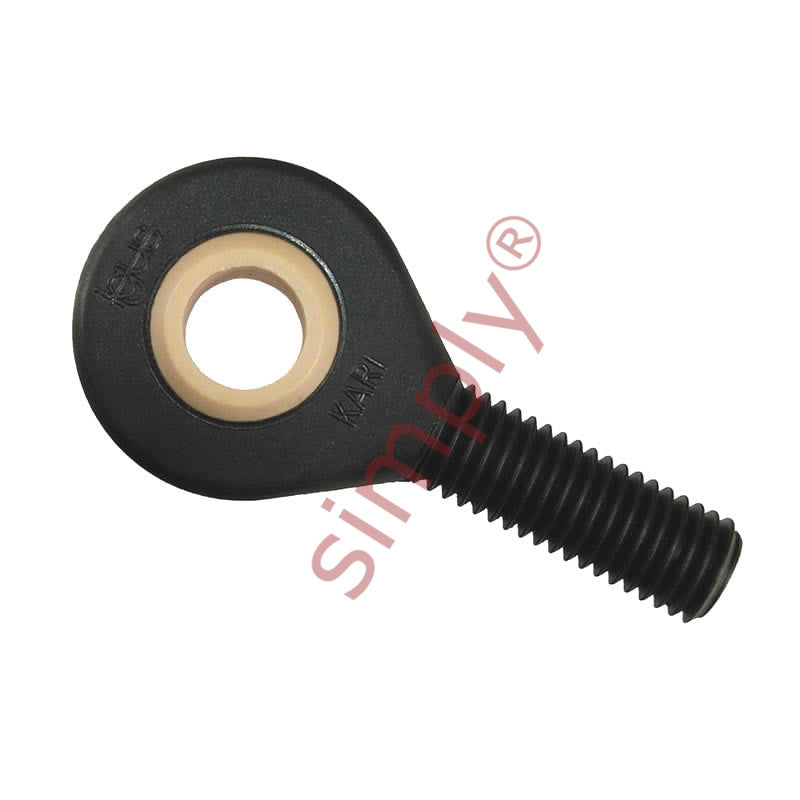

• igubal KALI03 Left Hand Male Plastic Rod End 0.187 inch Bore 10-32 Thread
1 1

SKU: KALI-03

igubal KALI03 Left Hand Male Plastic Rod End 0.187 inch Bore 10-32 Thread

igubal KALI03 Left Hand Male Plastic Rod End 0.187 inch Bore 10-32 Thread
€9,16 ex VAT
€9,16 ex VAT
Sale Sold out

In stock

Price Break
4+ €6,96
9+ €6,57
19+ €6,49
29+ €6,41
39+ €6,33
49+ €6,26
59+ €5,86
69+ €5,79
79+ €5,71
89+ €5,63
99+ €5,47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KALI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
10-32
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
4.76mm = 0.187 (3/16) inch
Technical
d1 0.187 inch
d2 0.625 inch
d3 10-32 inch
C1 0.234 inch
B 0.312 inch
h 1.25 inch
l1 0.75 inch
l2 1.563 inch
Max pivot angle 25°
Max static tensile strength (short term) 390 N
Max static tensile strength (long term) 200 N
Max radial load (short term) 70 N
Max radial load (long term) 35 N
Min thread depth 0.525 inch
Max torque outside thread 0.5 Nm
Max torque through ball 3 Nm
Weight 2.1 g
