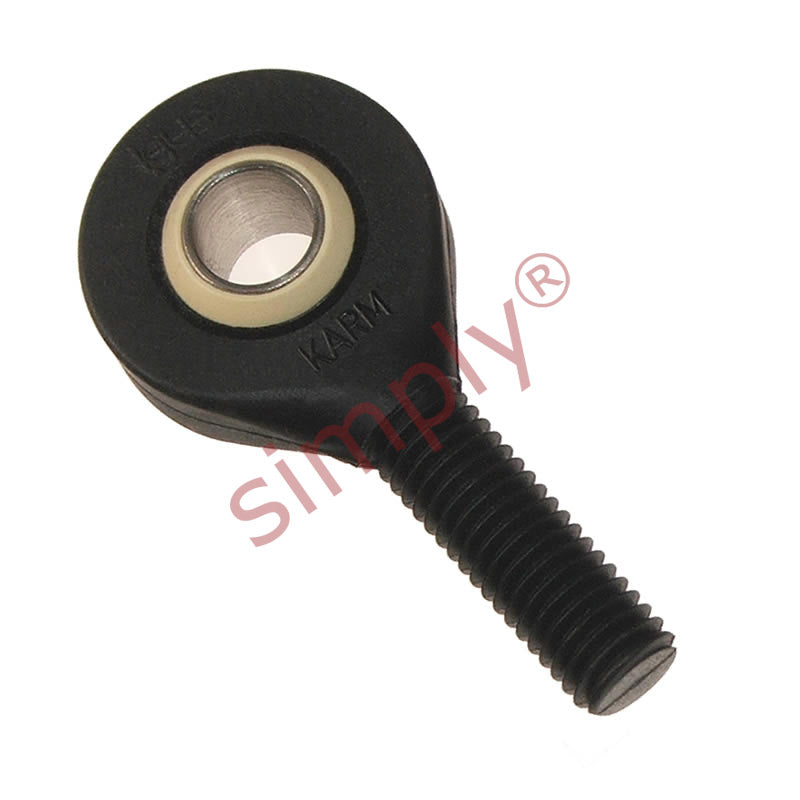

• igubal KALM06MH Left Hand Male Plastic Rod End 6mm Bore M6 Thread with Metal Insert
1 1

SKU: KALM-06.MH

igubal KALM06MH Left Hand Male Plastic Rod End 6mm Bore M6 Thread with Metal Insert

igubal KALM06MH Left Hand Male Plastic Rod End 6mm Bore M6 Thread with Metal Insert
€11,23 ex VAT
€11,23 ex VAT
Sale Sold out

In stock

Price Break
4+ €8,54
9+ €8,06
19+ €7,96
29+ €7,87
39+ €7,77
49+ €7,67
59+ €7,19
69+ €7,10
79+ €7,00
89+ €6,91
99+ €6,72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KALM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M6
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
6mm
Technical
d1 6mm
d2 20mm
d3 M6
C1 7mm
B 9mm
h 36mm
l1 21mm
l2 46mm
Max pivot angle 29°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 100 N
Max radial load (long term) 50 N
Min thread depth 15mm
Max torque strength outside thread 0.5 Nm
Max torque through ball (standard) 10 Nm
Max torque through ball (MH) 15 Nm
Weight 3.9 g
