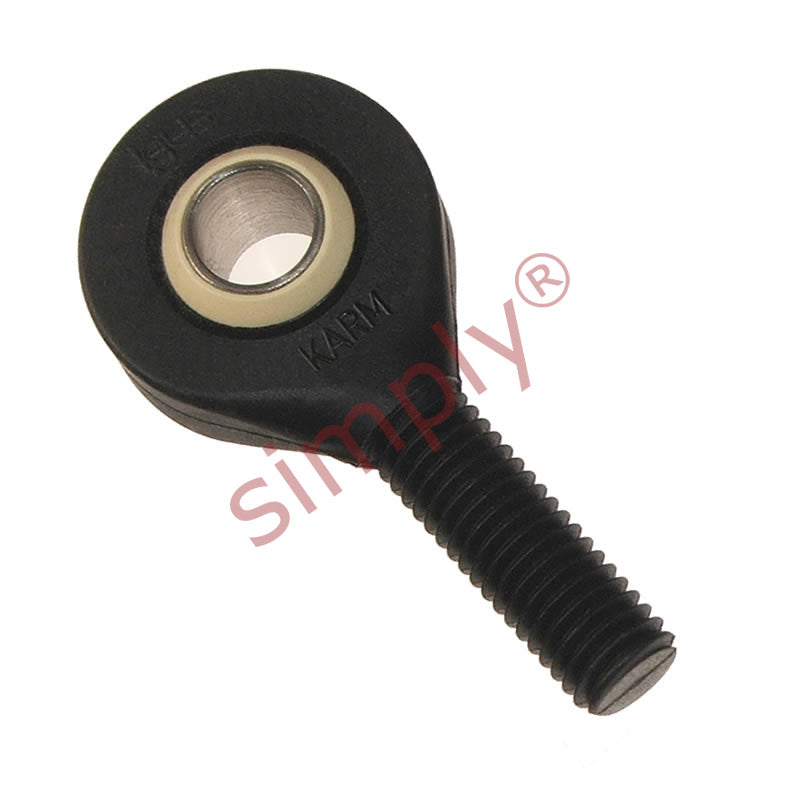

• igubal KALM12MH Left Hand Male Plastic Rod End 12mm Bore M12 Thread with Metal Insert - Allow 2-3 Days
1 1

SKU: KALM-12.MH

igubal KALM12MH Left Hand Male Plastic Rod End 12mm Bore M12 Thread with Metal Insert - Allow 2-3 Days

igubal KALM12MH Left Hand Male Plastic Rod End 12mm Bore M12 Thread with Metal Insert - Allow 2-3 Days
€17,05 ex VAT
€17,05 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,96
9+ €12,23
19+ €12,09
29+ €11,94
39+ €11,80
49+ €11,65
59+ €10,92
69+ €10,78
79+ €10,63
89+ €10,48
99+ €10,19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KALM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M12
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
12mm
Technical
d1 12mm
d2 34mm
d3 M12
C1 12mm
B 16mm
h 54mm
l1 32mm
l2 71mm
Max pivot angle 25°
Max static tensile strength (short term) 2700 N
Max static tensile strength (long term) 1350 N
Max radial load (short term) 400 N
Max radial load (long term) 200 N
Min thread depth 22mm
Max torque strength outside thread 6 Nm
Max torque through ball (standard) 30 Nm
Max torque through ball (MH) 70 Nm
Weight 18 g
