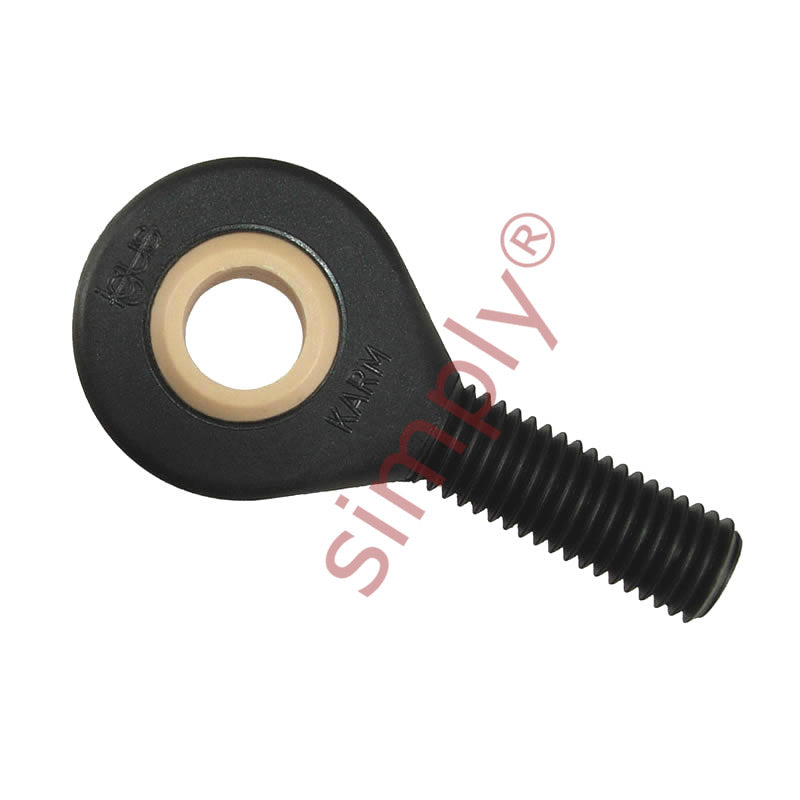

• igubal KALM20 Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Thread
1 1

SKU: KALM-20

igubal KALM20 Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Thread

igubal KALM20 Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Thread
€23,52 ex VAT
€23,52 ex VAT
Sale Sold out

In stock

Price Break
4+ €17,88
9+ €16,87
19+ €16,67
29+ €16,47
39+ €16,27
49+ €16,07
59+ €15,06
69+ €14,86
79+ €14,66
89+ €14,46
99+ €14,06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KALM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 50mm
d3 M20x1.5
C1 18mm
B 25mm
h 78mm
l1 45mm
l2 104mm
Max pivot angle 23°
Max static tensile strength (short term) 6000 N
Max static tensile strength (long term) 3000 N
Max radial load (short term) 1300 N
Max radial load (long term) 650 N
Min thread depth 32mm
Max torque strength outside thread 25 Nm
Max torque through ball (standard) 55 Nm
Max torque through ball (MH) 200 Nm
Weight 58 g
