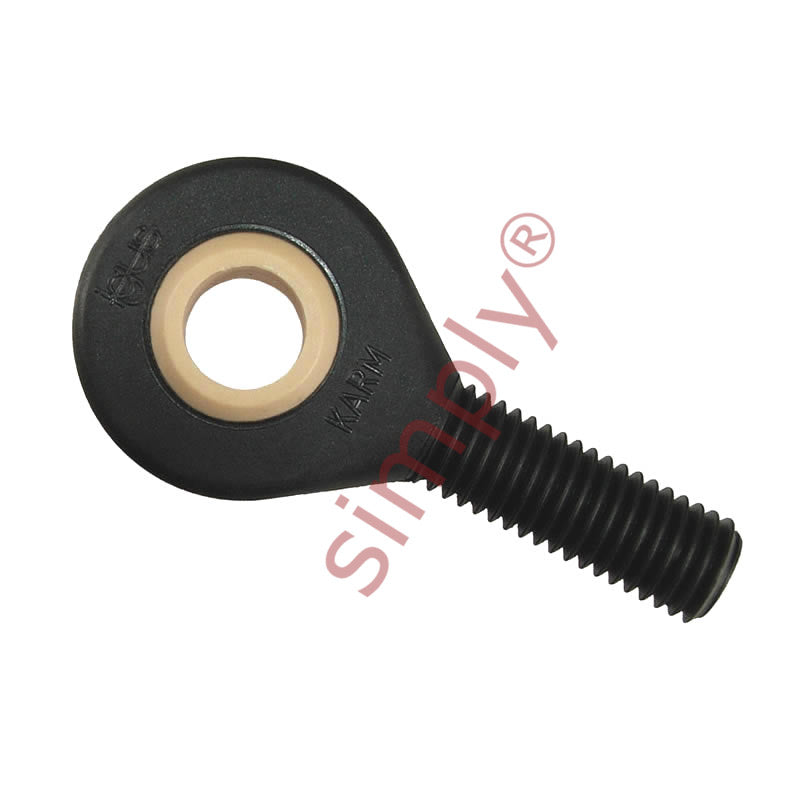

• igubal KALM20 Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread
1 1

SKU: KALM-20.FINE

igubal KALM20 Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread

igubal KALM20 Left Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread
€13,60 ex VAT
€13,60 ex VAT
Sale Sold out

In stock

Price Break
4+ €10,34
9+ €9,75
19+ €9,64
29+ €9,52
39+ €9,41
49+ €9,29
59+ €8,71
69+ €8,59
79+ €8,48
89+ €8,36
99+ €8,13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KALM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 50mm
d3 M20x1.5
C1 18mm
B 25mm
h 78mm
l1 45mm
l2 104mm
Max pivot angle 23°
Max static tensile strength (short term) 6000 N
Max static tensile strength (long term) 3000 N
Max radial load (short term) 1300 N
Max radial load (long term) 650 N
Min thread depth 32mm
Max torque strength outside thread 25 Nm
Max torque through ball (standard) 55 Nm
Max torque through ball (MH) 200 Nm
Weight 58 g
