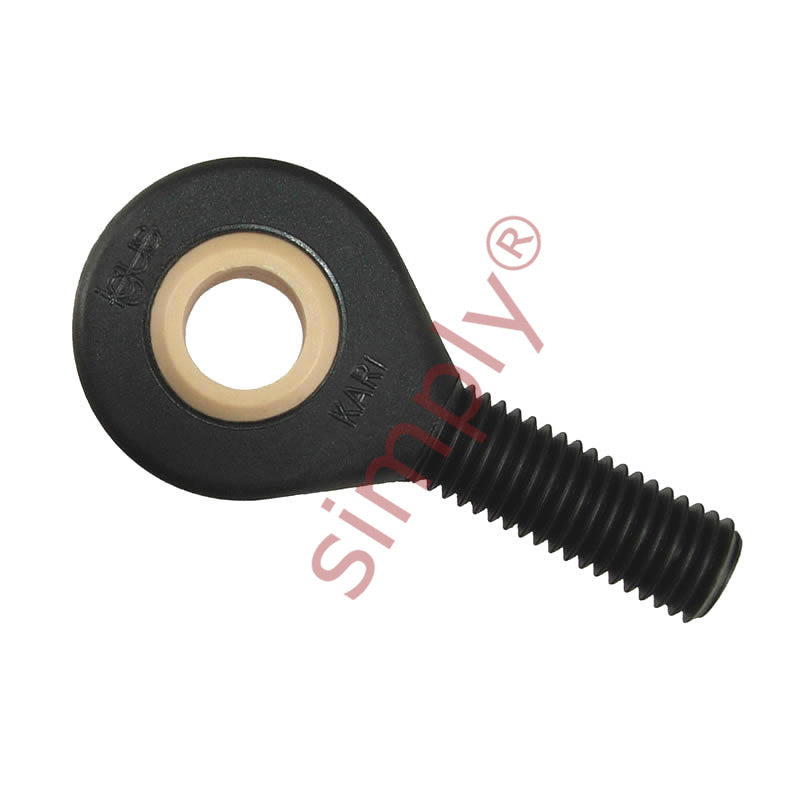

• igubal KARI12 Right Hand Male Plastic Rod End 0.75 inch Bore 3/4-16 Thread
1 1

SKU: KARI-12

igubal KARI12 Right Hand Male Plastic Rod End 0.75 inch Bore 3/4-16 Thread

igubal KARI12 Right Hand Male Plastic Rod End 0.75 inch Bore 3/4-16 Thread
€23,50 ex VAT
€23,50 ex VAT
Sale Sold out

In stock

Price Break
4+ €17,87
9+ €16,86
19+ €16,66
29+ €16,46
39+ €16,26
49+ €16,06
59+ €15,06
69+ €14,86
79+ €14,65
89+ €14,45
99+ €14,05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
3/4-16
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Technical
d1 0.75 inch
d2 1.75 inch
d3 3/4-16 inch
C1 0.593 inch
B 0.875 inch
h 2.875 inch
l1 1.75 inch
l2 3.75 inch
Max pivot angle 22°
Max static tensile strength (short term) 3900 N
Max static tensile strength (long term) 1950 N
Max radial load (short term) 1000 N
Max radial load (long term) 500 N
Min thread depth 1.226 inch
Max torque outside thread 25 Nm
Max torque through ball 70 Nm
Weight 42.8 g
