• igubal KARM08CLJ Right Hand Male Plastic Rod End 8mm Bore M8 Thread
1 1

SKU: KARM-08.CL.J

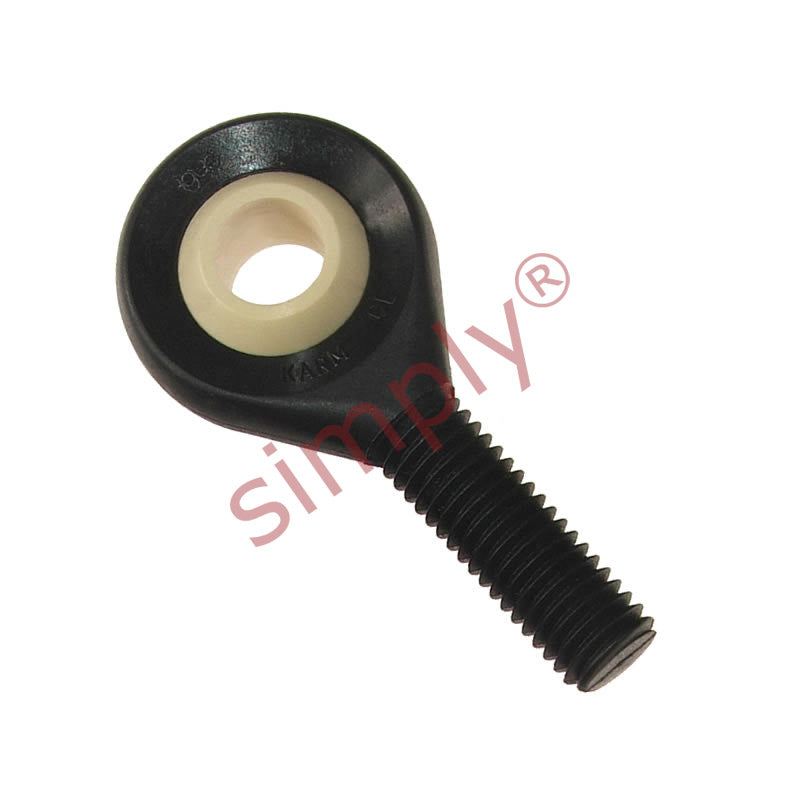

igubal KARM08CLJ Right Hand Male Plastic Rod End 8mm Bore M8 Thread

igubal KARM08CLJ Right Hand Male Plastic Rod End 8mm Bore M8 Thread
€14,42 ex VAT
€14,42 ex VAT
Sale Sold out

In stock

Price Break
4+ €10,96
9+ €10,34
19+ €10,22
29+ €10,10
39+ €9,97
49+ €9,85
59+ €9,24
69+ €9,11
79+ €8,99
89+ €8,87
99+ €8,62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_CL_J_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M8
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
8mm
Technical
d1 8mm
d2 24mm
d3 M8
C1 9mm
B 12mm
h 42mm
l1 25mm
l2 55mm
Max pivot angle 35°
Max static tensile strength (short term) 1700 N
Max static tensile strength (long term) 850 N
Max radial load (short term) 200 N
Max radial load (long term) 100 N
Min tread depth 18mm
Max torque strength outside thread 2 Nm
Max torque through ball (standard) 12 Nm
Max torque through ball (MH) 40 Nm
Weight 6.2 g
