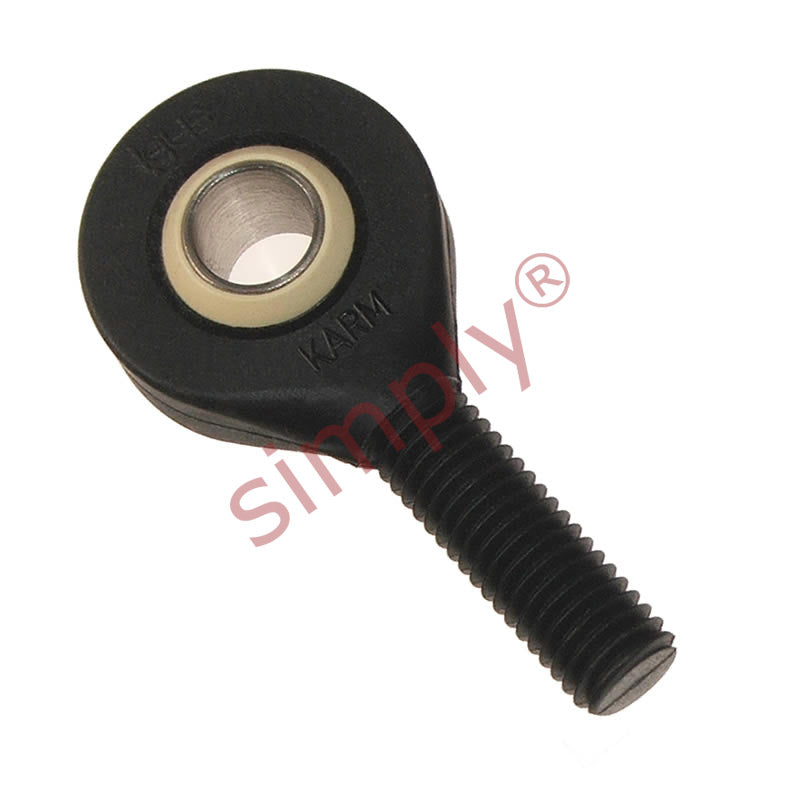

• igubal KARM14MH Right Hand Male Plastic Rod End 14mm Bore M14 Thread with Metal Insert
1 1

SKU: KARM-14.MH

igubal KARM14MH Right Hand Male Plastic Rod End 14mm Bore M14 Thread with Metal Insert

igubal KARM14MH Right Hand Male Plastic Rod End 14mm Bore M14 Thread with Metal Insert
€19,22 ex VAT
€19,22 ex VAT
Sale Sold out

In stock

Price Break
4+ €14,60
9+ €13,78
19+ €13,62
29+ €13,46
39+ €13,29
49+ €13,13
59+ €12,31
69+ €12,14
79+ €11,98
89+ €11,81
99+ €11,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M14
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
14mm
Technical
d1 14mm
d2 38mm
d3 M14
C1 13.5mm
B 19mm
h 61mm
l1 36mm
l2 79mm
Max pivot angle 25°
Max static tensile strength (short term) 3400 N
Max static tensile strength (long term) 1700 N
Max radial load (short term) 700 N
Max radial load (long term) 350 N
Min thread depth 25mm
Max torque strength outside thread 12 Nm
Max torque through ball (standard) 35 Nm
Max torque through ball (MH) 75 Nm
Weight 25 g
