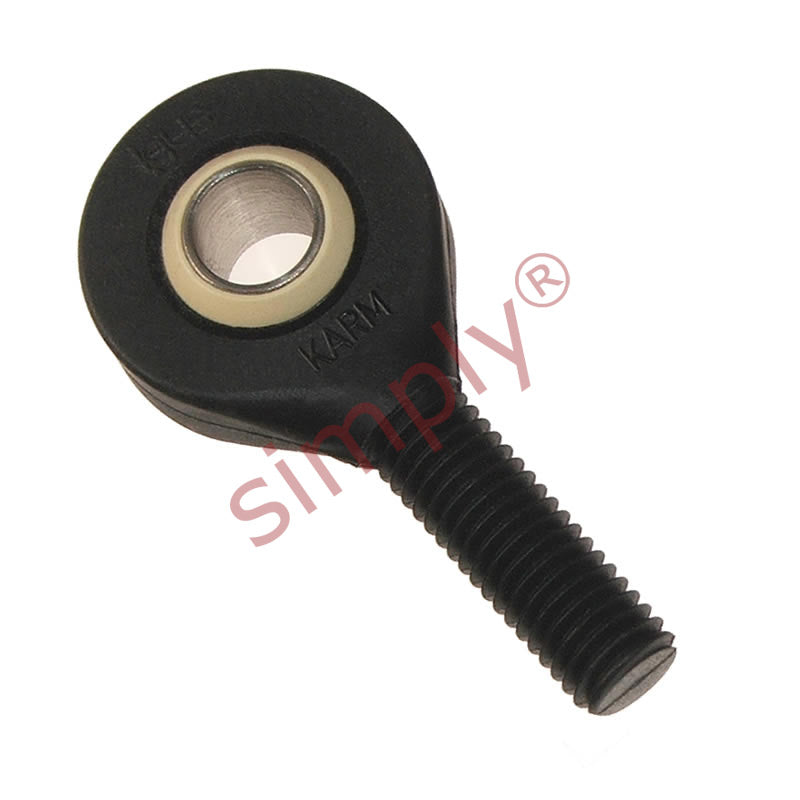

• igubal KARM18MH Right Hand Male Plastic Rod End 18mm Bore M18x1.5 Thread with Metal Insert
1 1

SKU: KARM-18.MH

igubal KARM18MH Right Hand Male Plastic Rod End 18mm Bore M18x1.5 Thread with Metal Insert

igubal KARM18MH Right Hand Male Plastic Rod End 18mm Bore M18x1.5 Thread with Metal Insert
€27,46 ex VAT
€27,46 ex VAT
Sale Sold out

In stock

Price Break
4+ €20,87
9+ €19,70
19+ €19,46
29+ €19,23
39+ €18,99
49+ €18,76
59+ €17,59
69+ €17,35
79+ €17,12
89+ €16,88
99+ €16,41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M18x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
18mm
Technical
d1 18mm
d2 46mm
d3 M18x1.5
C1 16.5mm
B 23mm
h 72mm
l1 41mm
l2 96mm
Max pivot angle 23°
Max static tensile strength (short term) 4200 N
Max static tensile strength (long term) 2100 N
Max radial load (short term) 1000 N
Max radial load (long term) 500 N
Min thread depth 29mm
Max torque strength outside thread 20 Nm
Max torque through ball (standard) 45 Nm
Max torque through ball (MH) 150 Nm
Weight 45.9 g
