SKU: KB16-PP-INA

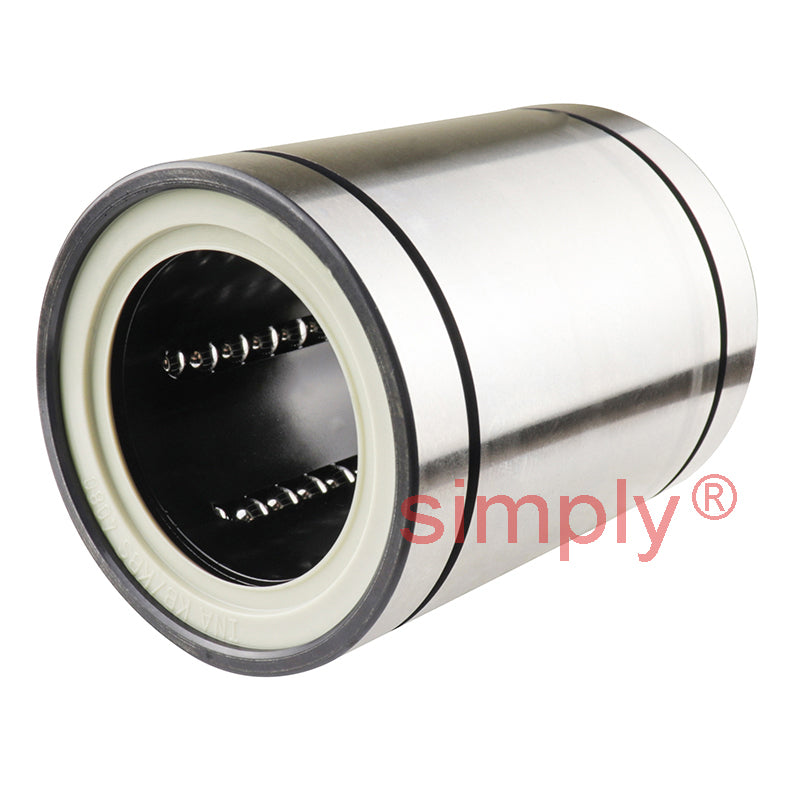

INA KB16PP Closed Linear Ball Bushing with Contact Seals 16x26x36mm
INA KB16PP Closed Linear Ball Bushing with Contact Seals 16x26x36mm
Regular price
€65,09
ex VAT
Regular price
Sale price
€65,09
ex VAT
In stock
Price Break
3+
€49,47
5+
€46,69
10+
€46,13
15+
€45,58
20+
€45,02
30+
€44,46
40+
€41,69
50+
€41,13
60+
€40,57
75+
€40,02
100+
€38,91
Quantity
Couldn't load pickup availability
Description
Description
|
INA KB..-PP Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm
Technical
Technical

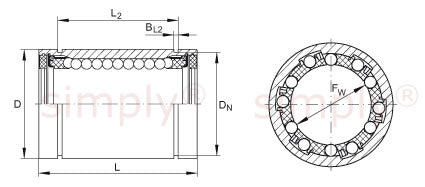

| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Numer of rows of balls | 5 |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| Mass | 0.05 kg |
| Basic dynamic load rating C min | 710 N |
| Basic static load rating C0 min | 530 N |
| Basic dynamic load rating C max | 840 N |
| Basic static load rating C0 max | 780 N |
