SKU: KB20-PP-AS-INA

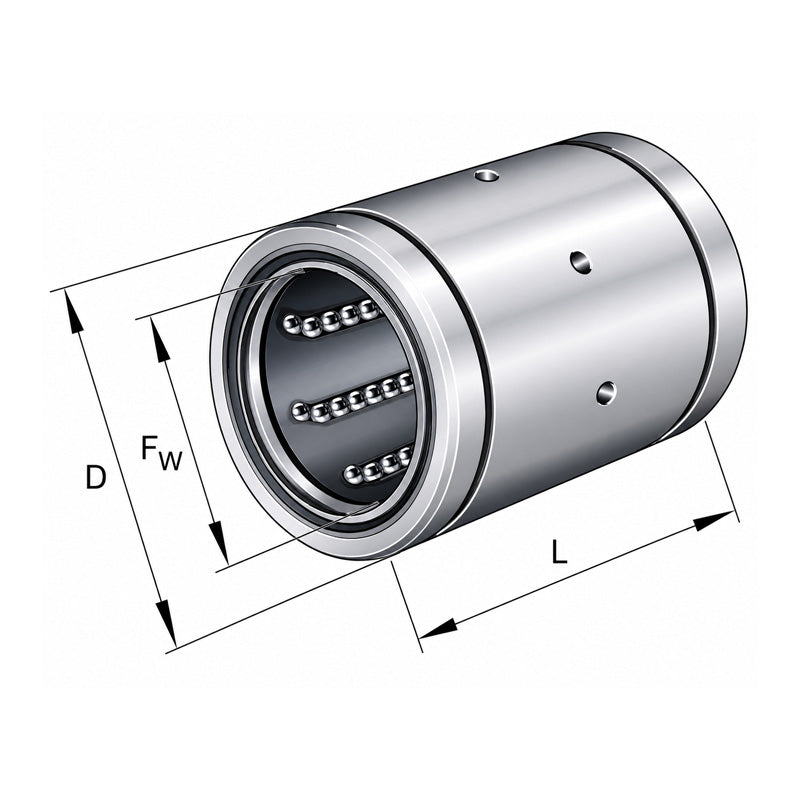

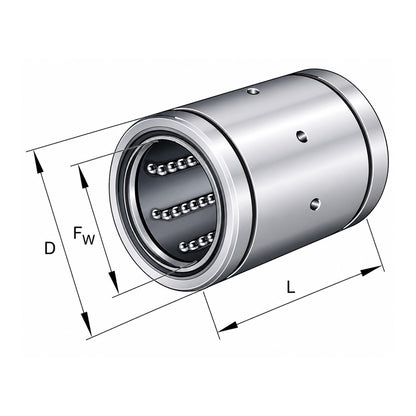

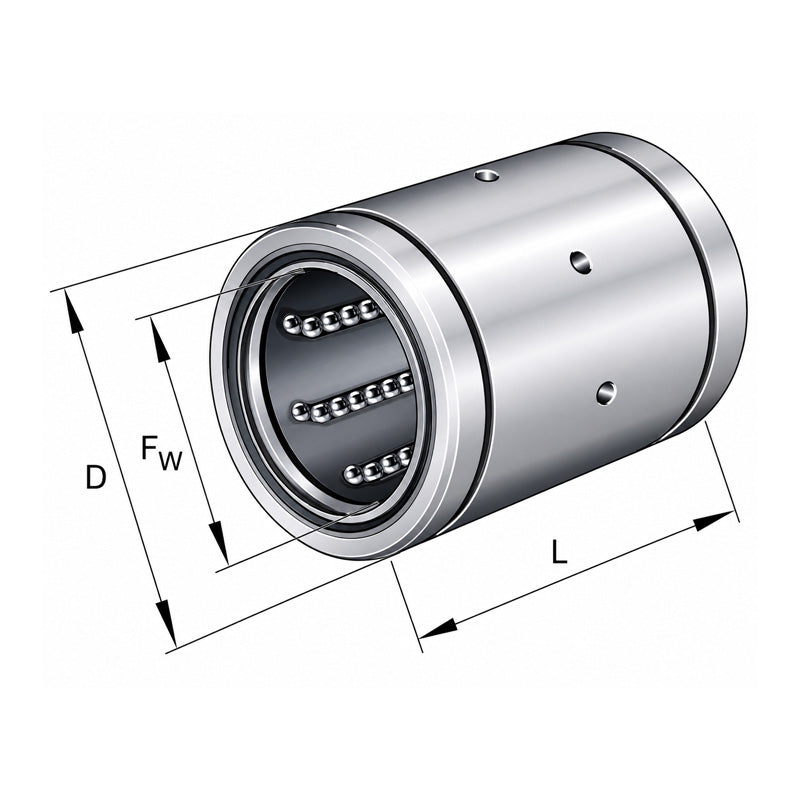

INA KB20PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 20x32x45mm
INA KB20PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 20x32x45mm
Regular price
€81,45
ex VAT
Regular price
Sale price
€81,45
ex VAT
In stock
Price Break
3+
€61,90
5+
€58,42
10+
€57,73
15+
€57,03
20+
€56,34
30+
€55,64
40+
€52,16
50+
€51,47
60+
€50,77
75+
€50,08
100+
€48,69
Quantity
Couldn't load pickup availability
Description
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm

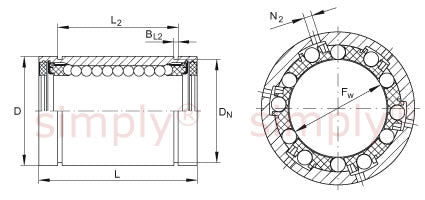

Technical
Technical
| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| N2 | 2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
