SKU: KB25-PP-AS-INA

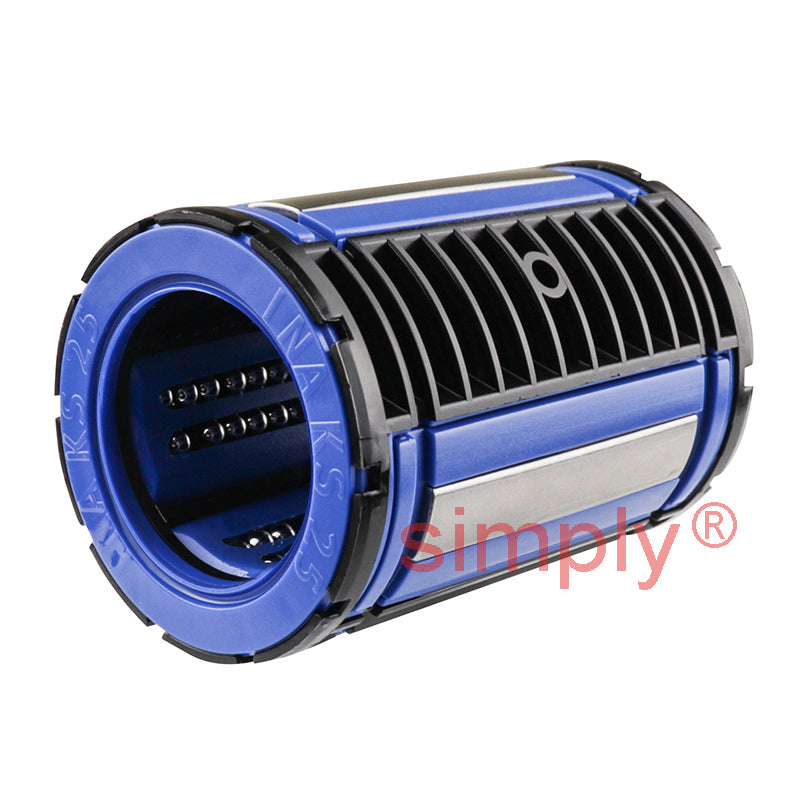

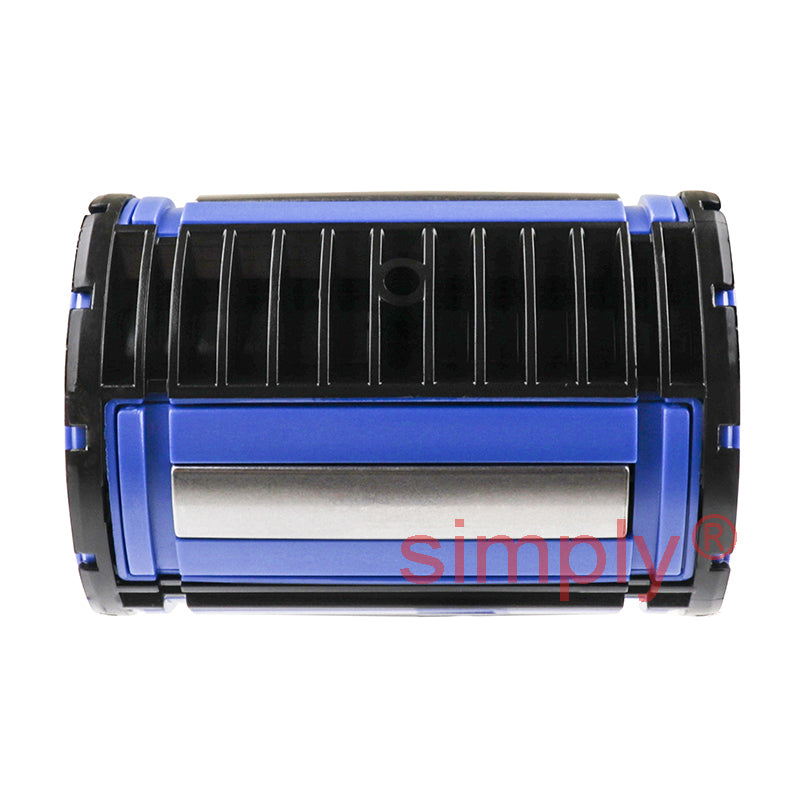

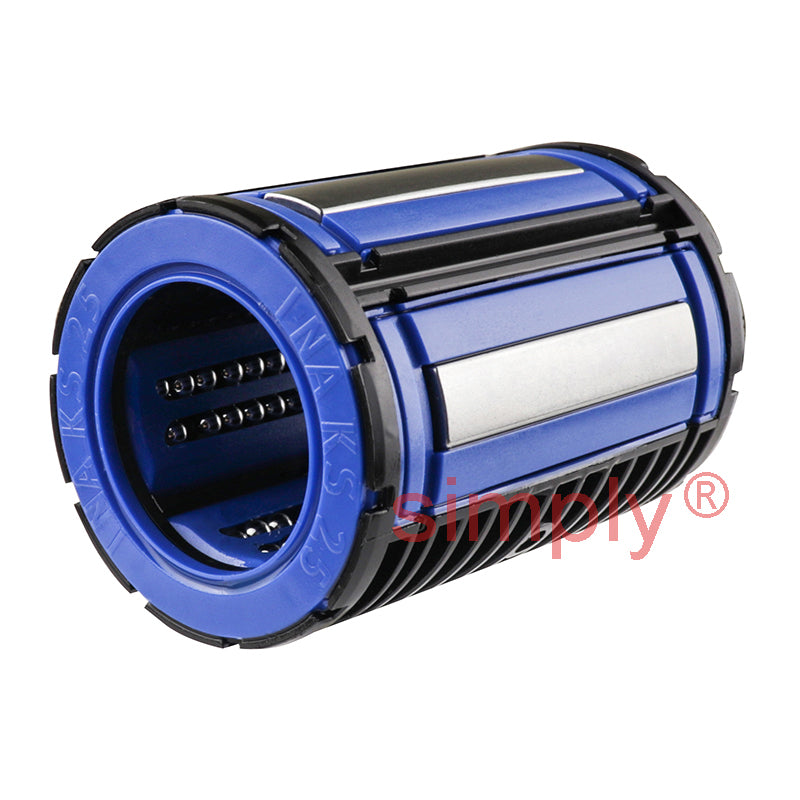

INA KB25PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 25x40x58mm
INA KB25PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
€102,99
ex VAT
Regular price
Sale price
€102,99
ex VAT
In stock
Price Break
3+
€78,27
5+
€73,87
10+
€72,99
15+
€72,11
20+
€71,23
30+
€70,35
40+
€65,96
50+
€65,08
60+
€64,20
75+
€63,32
100+
€61,56
Quantity
Couldn't load pickup availability
Description
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| N2 | 2.5mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
