SKU: KB50-INA

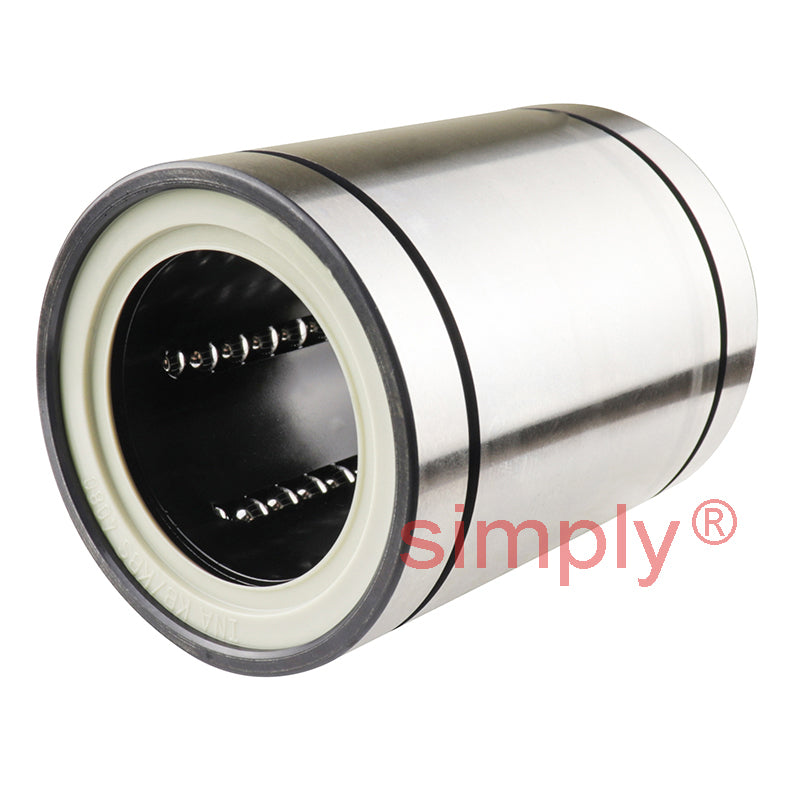

INA KB50 Closed Linear Ball Bushing with Gap Seals 50x75x100mm
INA KB50 Closed Linear Ball Bushing with Gap Seals 50x75x100mm
Regular price
€176,09
ex VAT
Regular price
Sale price
€176,09
ex VAT
In stock
Price Break
3+
€133,82
5+
€126,30
10+
€124,80
15+
€123,30
20+
€121,79
30+
€120,29
40+
€112,77
50+
€111,27
60+
€109,76
75+
€108,26
100+
€105,25
Quantity
Couldn't load pickup availability
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 100mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 75mm |
| L | 100mm |
| Numer of rows of balls | 6 |
| BL2 | 2.65mm |
| DN | 72mm |
| L2 | 77.3mm |
| Mass | 1 kg |
| Basic dynamic load rating C min | 8700 N |
| Basic static load rating C0 min | 6300 N |
| Basic dynamic load rating C max | 9200 N |
| Basic static load rating C0 max | 8000 N |
