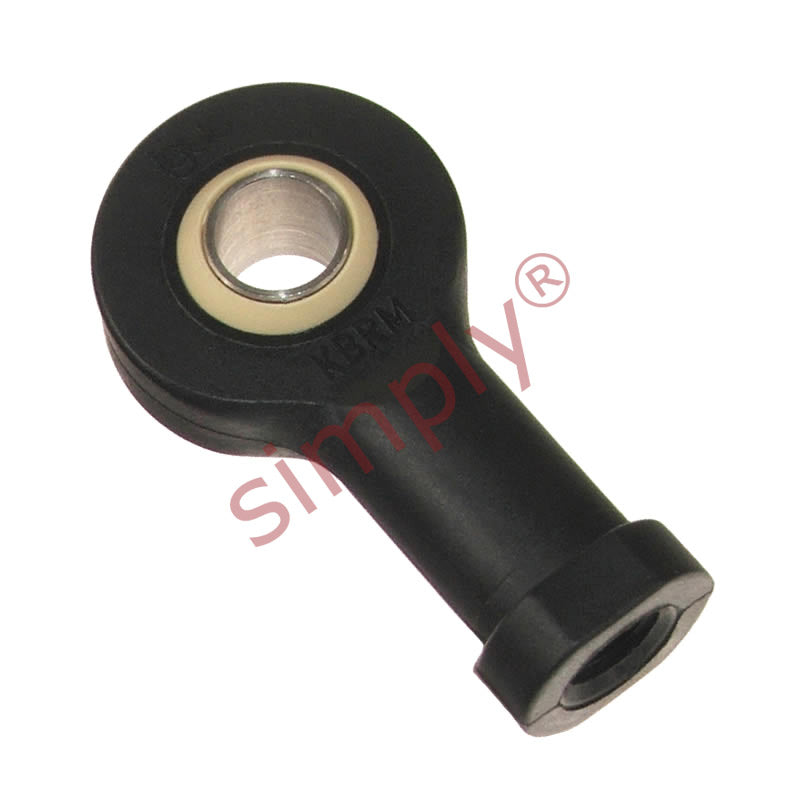

• igubal KBLM03MH Left Hand Female Plastic Rod End 3mm Bore M3 Thread with Metal Insert
1 1

SKU: KBLM-03.MH

igubal KBLM03MH Left Hand Female Plastic Rod End 3mm Bore M3 Thread with Metal Insert

igubal KBLM03MH Left Hand Female Plastic Rod End 3mm Bore M3 Thread with Metal Insert
€16,18 ex VAT
€16,18 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,30
9+ €11,61
19+ €11,47
29+ €11,34
39+ €11,20
49+ €11,06
59+ €10,37
69+ €10,23
79+ €10,09
89+ €9,95
99+ €9,68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M3
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
3mm
Technical
d1 3mm
d2 13mm
d3 M3
d4 6.5mm
d5 8mm
C1 4.5mm
B 6mm
h1 18.5mm
l3 8mm
l4 25mm
W SW06
Max pivot angle 30°
Max static tensile strength (short term) 800 N
Max static tensile strength (long term) 400 N
Max radial load (short term) 100 N
Max radial load (long term) 50 N
Min thread depth 5mm
Max torque strength inside thread 0.5 Nm
Max torque through ball (standard) 2 Nm
Max torque through ball (MH) 4 Nm
Weight 2.7 g
