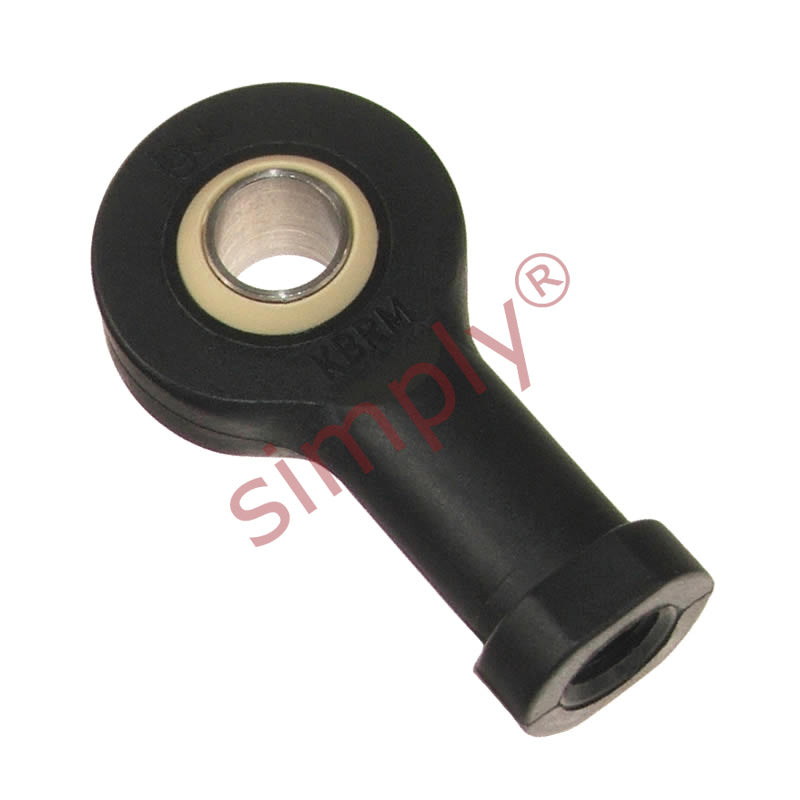

• igubal KBLM05MH Left Hand Female Plastic Rod End 5mm Bore M5 Thread with Metal Insert
1 1

SKU: KBLM-05.MH

igubal KBLM05MH Left Hand Female Plastic Rod End 5mm Bore M5 Thread with Metal Insert

igubal KBLM05MH Left Hand Female Plastic Rod End 5mm Bore M5 Thread with Metal Insert
€10,88 ex VAT
€10,88 ex VAT
Sale Sold out

In stock

Price Break
4+ €8,27
9+ €7,80
19+ €7,71
29+ €7,62
39+ €7,53
49+ €7,43
59+ €6,97
69+ €6,87
79+ €6,78
89+ €6,69
99+ €6,50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M5
d4 9mm
d5 12mm
C1 6mm
B 8mm
h1 27mm
l3 10mm
l4 36mm
W SW09
Max pivot angle 30°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 7mm
Max torque strength inside thread 1 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 3.4 g
