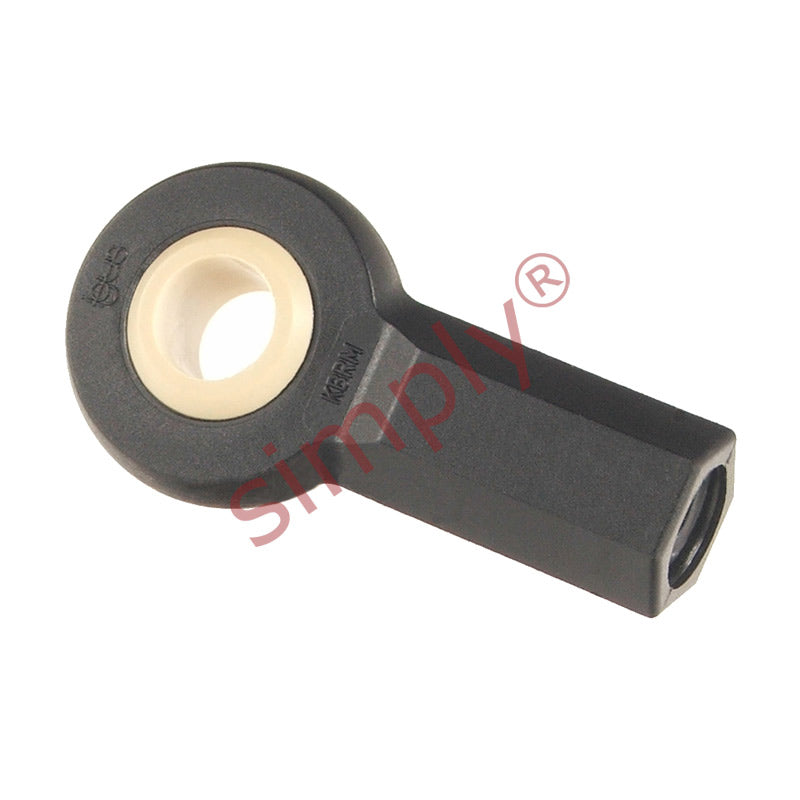

• igubal KBLM10F Left Hand Female Plastic Rod End 10mm Bore M10x1.25 Thread
1 1

SKU: KBLM-10.F

igubal KBLM10F Left Hand Female Plastic Rod End 10mm Bore M10x1.25 Thread

igubal KBLM10F Left Hand Female Plastic Rod End 10mm Bore M10x1.25 Thread
€16,18 ex VAT
€16,18 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,30
9+ €11,61
19+ €11,47
29+ €11,34
39+ €11,20
49+ €11,06
59+ €10,37
69+ €10,23
79+ €10,09
89+ €9,95
99+ €9,68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M10x1.25
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 30mm
d3 M10x1.25
d4 15mm
d5 19mm
C1 10.5mm
B 14mm
h1 43mm
l3 20mm
l4 58mm
W SW17
Max pivot angle 25°
Max static tensile strength (short term) 3100 N
Max static tensile strength (long term) 1550 N
Max radial load (short term) 800 N
Max radial load (long term) 400 N
Min thread depth 13mm
Max torque strength inside thread 6 Nm
Max torque through ball (standard) 20 Nm
Max torque through ball (MH) 50 Nm
Weight 14.6 g
