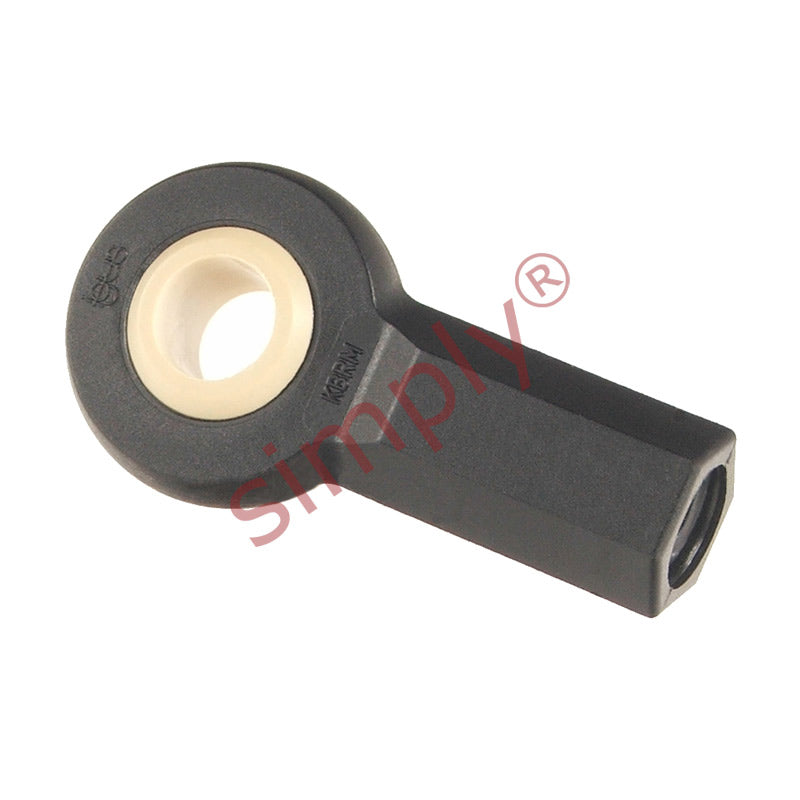

• igubal KBLM16F Left Hand Female Plastic Rod End 16mm Bore M16x1.5 Thread
1 1

SKU: KBLM-16.F

igubal KBLM16F Left Hand Female Plastic Rod End 16mm Bore M16x1.5 Thread

igubal KBLM16F Left Hand Female Plastic Rod End 16mm Bore M16x1.5 Thread
€18,33 ex VAT
€18,33 ex VAT
Sale Sold out

In stock

Price Break
4+ €13,93
9+ €13,15
19+ €12,99
29+ €12,83
39+ €12,68
49+ €12,52
59+ €11,74
69+ €11,58
79+ €11,43
89+ €11,27
99+ €10,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M16x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
16mm
Technical
d1 16mm
d2 42mm
d3 M16x1.5
d4 22mm
d5 27mm
C1 15mm
B 21mm
h1 64mm
l3 28mm
l4 85mm
W SW22
Max pivot angle 23°
Max static tensile strength (short term) 4200 N
Max static tensile strength (long term) 2100 N
Max radial load (short term) 1300 N
Max radial load (long term) 650 N
Min thread depth 19mm
Max torque strength inside thread 27.5 Nm
Max torque through ball (standard) 40 Nm
Max torque through ball (MH) 110 Nm
Weight 39.6 g
