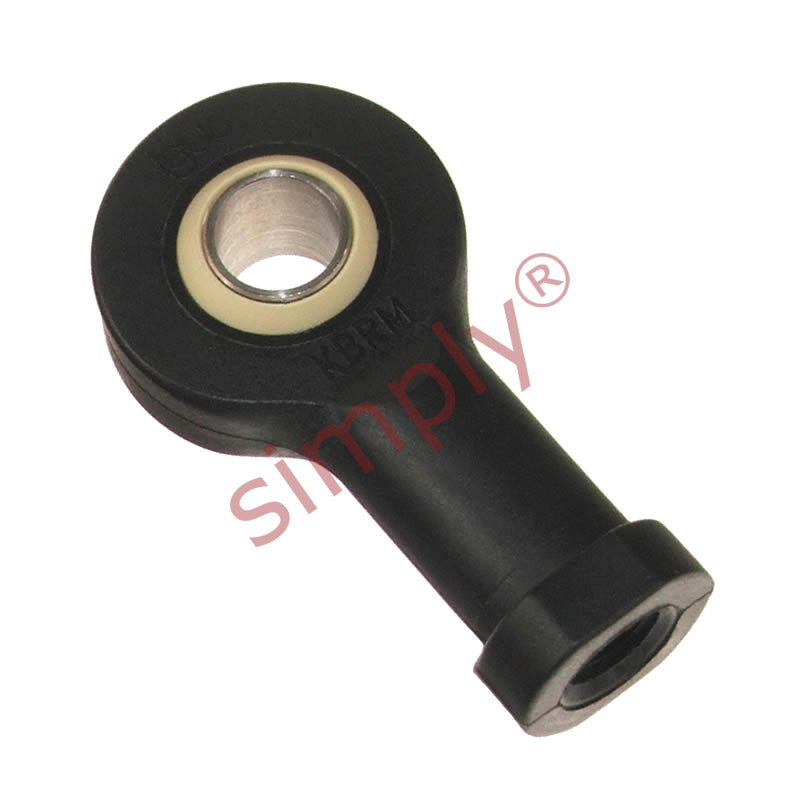

• igubal KBLM20M20MH Left Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread with Metal Insert - Allow 2-3 Days
1 1

SKU: KBLM-20.M20.MH

igubal KBLM20M20MH Left Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread with Metal Insert - Allow 2-3 Days

igubal KBLM20M20MH Left Hand Female Plastic Rod End 20mm Bore M20x2.5 Thread with Metal Insert - Allow 2-3 Days
€35,02 ex VAT
€35,02 ex VAT
Sale Sold out

In stock

Price Break
4+ €26,61
9+ €25,12
19+ €24,82
29+ €24,52
39+ €24,22
49+ €23,92
59+ €22,43
69+ €22,13
79+ €21,83
89+ €21,53
99+ €20,93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBLM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M20x2.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 50mm
d3 M20x2.5
d4 28mm
d5 34mm
C1 18mm
B 25mm
h1 77mm
l3 33mm
l4 102mm
W SW30
Max pivot angle 23°
Max static tensile strength (short term) 5400 N
Max static tensile strength (long term) 2700 N
Max radial load (short term) 2100 N
Max radial load (long term) 1050 N
Min thread depth 22mm
Max torque strength inside thread 60 Nm
Max torque through ball (standard) 55 Nm
Max torque through ball (MH) 200 Nm
Weight 73.5 g
