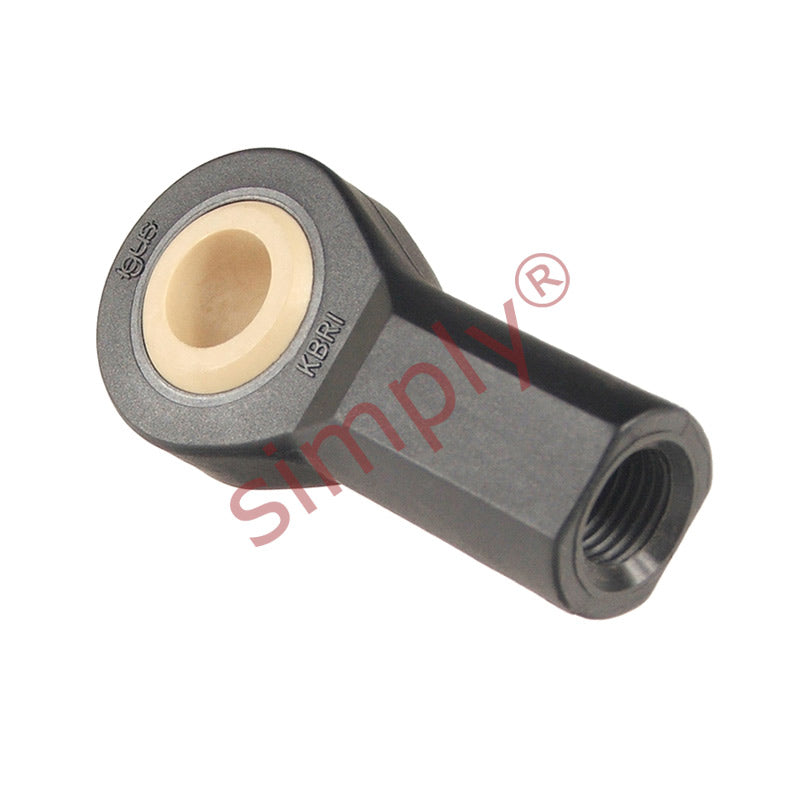

• igubal KBRI08 Right Hand Female Plastic Rod End 0.5 inch Bore 1/2-20 Thread
1 1

SKU: KBRI-08

igubal KBRI08 Right Hand Female Plastic Rod End 0.5 inch Bore 1/2-20 Thread

igubal KBRI08 Right Hand Female Plastic Rod End 0.5 inch Bore 1/2-20 Thread
€15,53 ex VAT
€15,53 ex VAT
Sale Sold out

In stock

Price Break
4+ €11,80
9+ €11,14
19+ €11,00
29+ €10,87
39+ €10,74
49+ €10,61
59+ €9,94
69+ €9,81
79+ €9,68
89+ €9,55
99+ €9,28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
1/2-20
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Technical
d1 0.5 inch
d2 1.312 inch
d3 1/2-20 inch
d4 0.875 inch
C1 0.487 inch
B 0.625 inch
h1 2.125 inch
l3 1.062 inch
l4 2.781 inch
W 0.75 inch
Max pivot angle 22°
Max static tensile strength (short term) 2600 N
Max static tensile strength (long term) 1300 N
Max radial load (short term) 1500 N
Max radial load (long term) 750 N
Min thread depth 0.743 inch
Max torque outside thread 23 Nm
Max torque through ball 35 Nm
Weight 26.5 g
