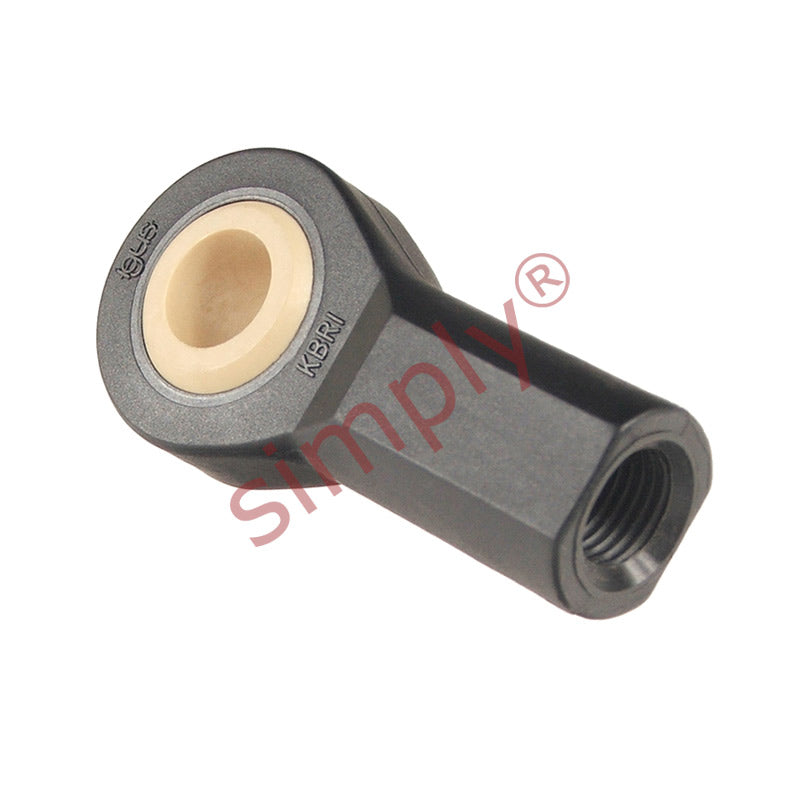

• igubal KBRI10 Right Hand Female Plastic Rod End 0.625 inch Bore 5/8-18 Thread - Allow 2-3 Days
1 1

SKU: KBRI-10

igubal KBRI10 Right Hand Female Plastic Rod End 0.625 inch Bore 5/8-18 Thread - Allow 2-3 Days

igubal KBRI10 Right Hand Female Plastic Rod End 0.625 inch Bore 5/8-18 Thread - Allow 2-3 Days
€18,34 ex VAT
€18,34 ex VAT
Sale Sold out

In stock

Price Break
4+ €13,94
9+ €13,16
19+ €13,00
29+ €12,84
39+ €12,69
49+ €12,53
59+ €11,75
69+ €11,59
79+ €11,43
89+ €11,28
99+ €10,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRI_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
5/8-18
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Technical
d1 0.625 inch
d2 1.5 inch
d3 5/8-18 inch
d4 1 inch
C1 0.545 inch
B 0.75 inch
h1 2.5 inch
l3 1.375 inch
l4 3.25 inch
W 0.875 inch
Max pivot angle 22°
Max static tensile strength (short term) 4900 N
Max static tensile strength (long term) 2450 N
Max radial load (short term) 1700 N
Max radial load (long term) 850 N
Min thread depth 0.962 inch
Max torque outside thread 30 Nm
Max torque through ball 50 Nm
Weight 38.7 g
