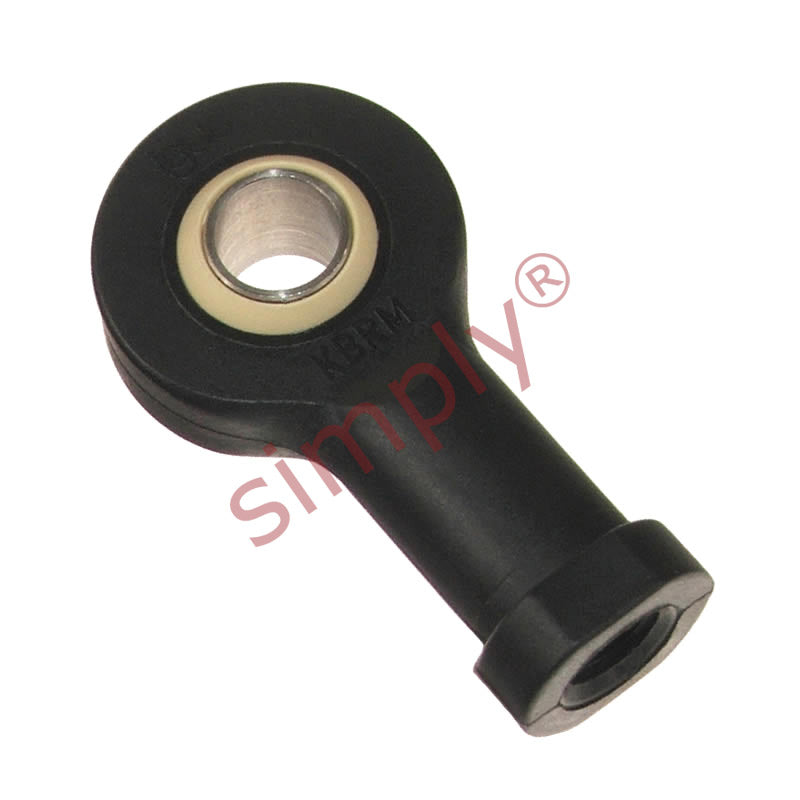

• igubal KBRM03MH Right Hand Female Plastic Rod End 3mm Bore M3 Thread with Metal Insert
1 1

SKU: KBRM-03.MH

igubal KBRM03MH Right Hand Female Plastic Rod End 3mm Bore M3 Thread with Metal Insert

igubal KBRM03MH Right Hand Female Plastic Rod End 3mm Bore M3 Thread with Metal Insert
€17,51 ex VAT
€17,51 ex VAT
Sale Sold out

In stock

Price Break
4+ €13,30
9+ €12,55
19+ €12,40
29+ €12,25
39+ €12,11
49+ €11,96
59+ €11,21
69+ €11,06
79+ €10,91
89+ €10,76
99+ €10,46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M3
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
3mm
Technical
d1 3mm
d2 13mm
d3 M3
d4 6.5mm
d5 8mm
C1 4.5mm
B 6mm
h1 18.5mm
l3 8mm
l4 25mm
W SW06
Max pivot angle 30°
Max static tensile strength (short term) 800 N
Max static tensile strength (long term) 400 N
Max radial load (short term) 100 N
Max radial load (long term) 50 N
Min thread depth 5mm
Max torque strength inside thread 0.5 Nm
Max torque through ball (standard) 2 Nm
Max torque through ball (MH) 4 Nm
Weight 2.7 g
