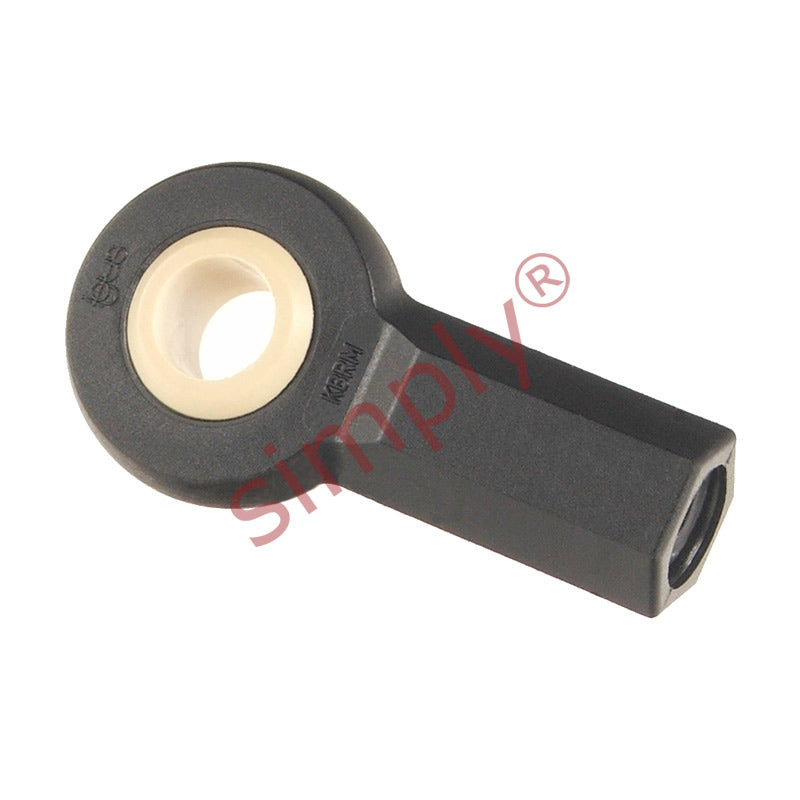

• igubal KBRM05 Right Hand Female Plastic Rod End 5mm Bore M5 Thread
1 1

SKU: KBRM-05

igubal KBRM05 Right Hand Female Plastic Rod End 5mm Bore M5 Thread

igubal KBRM05 Right Hand Female Plastic Rod End 5mm Bore M5 Thread
€13,66 ex VAT
€13,66 ex VAT
Sale Sold out

In stock

Price Break
4+ €10,38
9+ €9,79
19+ €9,68
29+ €9,56
39+ €9,45
49+ €9,33
59+ €8,75
69+ €8,63
79+ €8,51
89+ €8,40
99+ €8,16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M5
d4 9mm
d5 12mm
C1 6mm
B 8mm
h1 27mm
l1 10mm
l2 36mm
W SW09
Max pivot angle 30°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 7mm
Max torque strength inside thread 1 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 3.4 g
