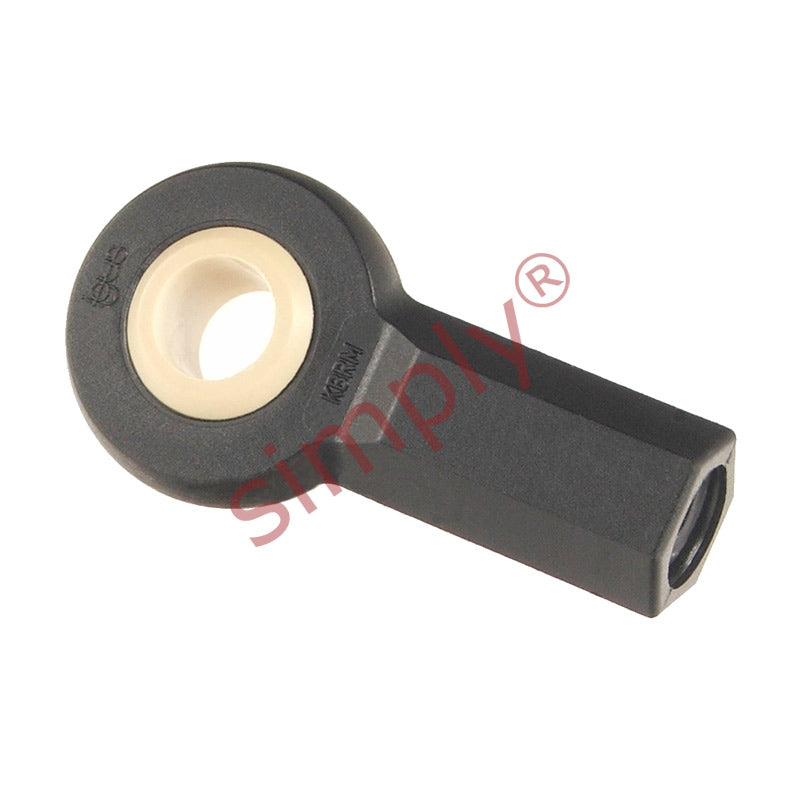

• igubal KBRM05M4 Right Hand Female Plastic Rod End 5mm Bore M4 Thread
1 1

SKU: KBRM-05.M4

igubal KBRM05M4 Right Hand Female Plastic Rod End 5mm Bore M4 Thread

igubal KBRM05M4 Right Hand Female Plastic Rod End 5mm Bore M4 Thread
€15,79 ex VAT
€15,79 ex VAT
Sale Sold out

In stock

Price Break
4+ €11,99
9+ €11,32
19+ €11,18
29+ €11,05
39+ €10,92
49+ €10,78
59+ €10,11
69+ €9,97
79+ €9,84
89+ €9,70
99+ €9,43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M4
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M4
d4 9mm
d5 12mm
C1 6mm
B 8mm
h1 27mm
l1 10mm
l2 36mm
W SW09
Max pivot angle 30°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 7mm
Max torque strength inside thread 0.75 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 3.5 g
