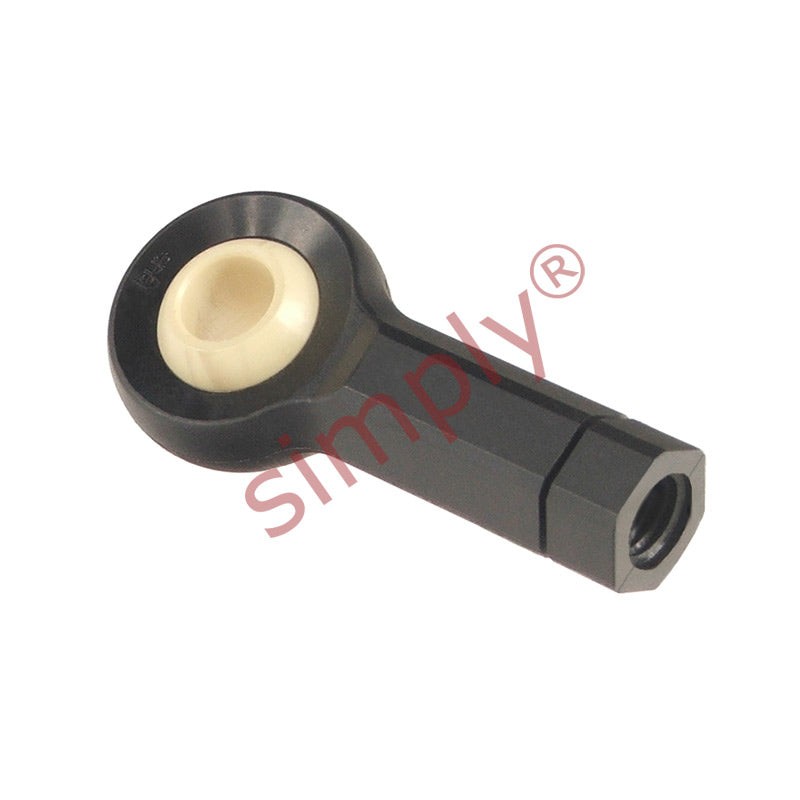

• igubal KBRM06CLJ Right Hand Female Plastic Rod End with Hexagon Body 6mm Bore M6 Thread - Allow 2-3 Days
1 1

SKU: KBRM-06.CL.J

igubal KBRM06CLJ Right Hand Female Plastic Rod End with Hexagon Body 6mm Bore M6 Thread - Allow 2-3 Days

igubal KBRM06CLJ Right Hand Female Plastic Rod End with Hexagon Body 6mm Bore M6 Thread - Allow 2-3 Days
€15,81 ex VAT
€15,81 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,01
9+ €11,34
19+ €11,20
29+ €11,07
39+ €10,93
49+ €10,80
59+ €10,12
69+ €9,99
79+ €9,85
89+ €9,72
99+ €9,45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_CL_J_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M6
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
6mm
Technical
d1 6mm
d2 20mm
d3 M6
d4 SW10
B 9mm
C1 7mm
h 40mm
h1 36.5mm
h2 30mm
L2 20mm
L1 46.5mm
m 5.7mm
Max pivot angle 40°
Max static tensile strength (short term) 1400 N
Max static tensile strength (long term) 700 N
Max radial load (short term) 300 N
Max radial load (long term) 150 N
Min thread depth 8mm
Max torque strength outside thread 0.75 Nm
Max torque through ball (standard) 10 Nm
Max torque through ball (MH) 15 Nm
Weight 4.5 g
