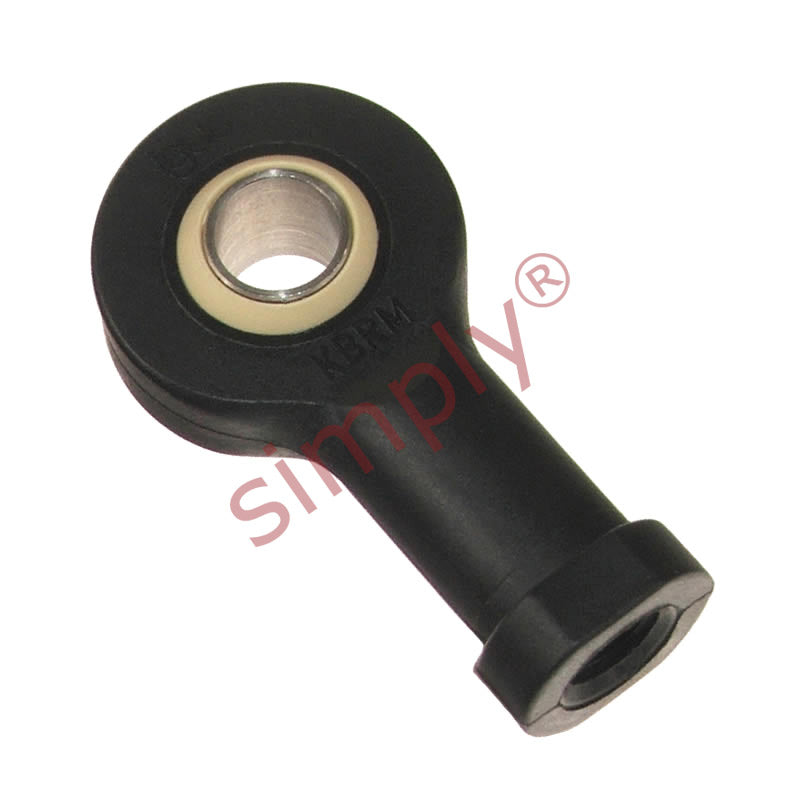

• igubal KBRM12MH Right Hand Female Plastic Rod End 12mm Bore M12 Thread with Metal Insert
1 1

SKU: KBRM-12.MH

igubal KBRM12MH Right Hand Female Plastic Rod End 12mm Bore M12 Thread with Metal Insert

igubal KBRM12MH Right Hand Female Plastic Rod End 12mm Bore M12 Thread with Metal Insert
€42,76 ex VAT
€42,76 ex VAT
Sale Sold out

In stock

Price Break
4+ €32,49
9+ €30,66
19+ €30,30
29+ €29,93
39+ €29,57
49+ €29,20
59+ €27,38
69+ €27,01
79+ €26,65
89+ €26,28
99+ €25,55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M12
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
12mm
Technical
d1 12mm
d2 34mm
d3 M12
d4 18mm
d5 22mm
C1 12mm
B 16mm
h1 50mm
l3 22mm
l4 67mm
W SW19
Max pivot angle 25°
Max static tensile strength (short term) 3600 N
Max static tensile strength (long term) 1800 N
Max radial load (short term) 900 N
Max radial load (long term) 450 N
Min thread depth 15mm
Max torque strength inside thread 20 Nm
Max torque through ball (standard) 30 Nm
Max torque through ball (MH) 70 Nm
Weight 22 g
