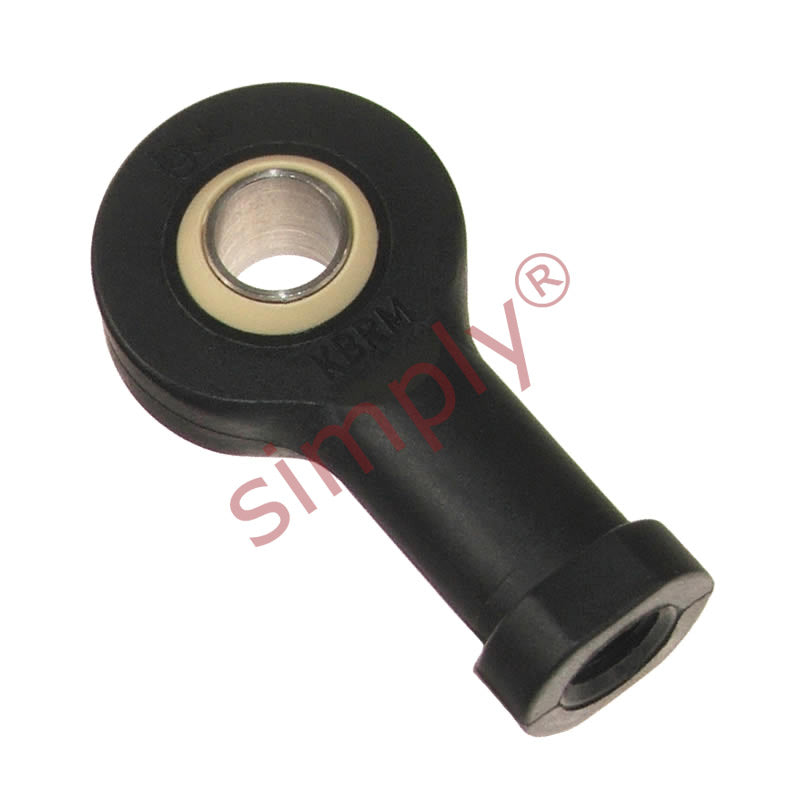

• igubal KBRM14MH Right Hand Female Plastic Rod End 14mm Bore M14 Thread with Metal Insert
1 1

SKU: KBRM-14.MH

igubal KBRM14MH Right Hand Female Plastic Rod End 14mm Bore M14 Thread with Metal Insert

igubal KBRM14MH Right Hand Female Plastic Rod End 14mm Bore M14 Thread with Metal Insert
€22,11 ex VAT
€22,11 ex VAT
Sale Sold out

In stock

Price Break
4+ €16,81
9+ €15,86
19+ €15,67
29+ €15,48
39+ €15,30
49+ €15,11
59+ €14,16
69+ €13,97
79+ €13,78
89+ €13,60
99+ €13,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M14
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
14mm
Technical
d1 14mm
d2 38mm
d3 M14
d4 20mm
d5 25mm
C1 13.5mm
B 19mm
h1 57mm
l3 25mm
l4 76mm
W SW22
Max pivot angle 23°
Max static tensile strength (short term) 4000 N
Max static tensile strength (long term) 2000 N
Max radial load (short term) 1000 N
Max radial load (long term) 500 N
Min thread depth 17mm
Max torque strength inside thread 25 Nm
Max torque through ball (standard) 35 Nm
Max torque through ball (MH) 75 Nm
Weight 30.9 g
