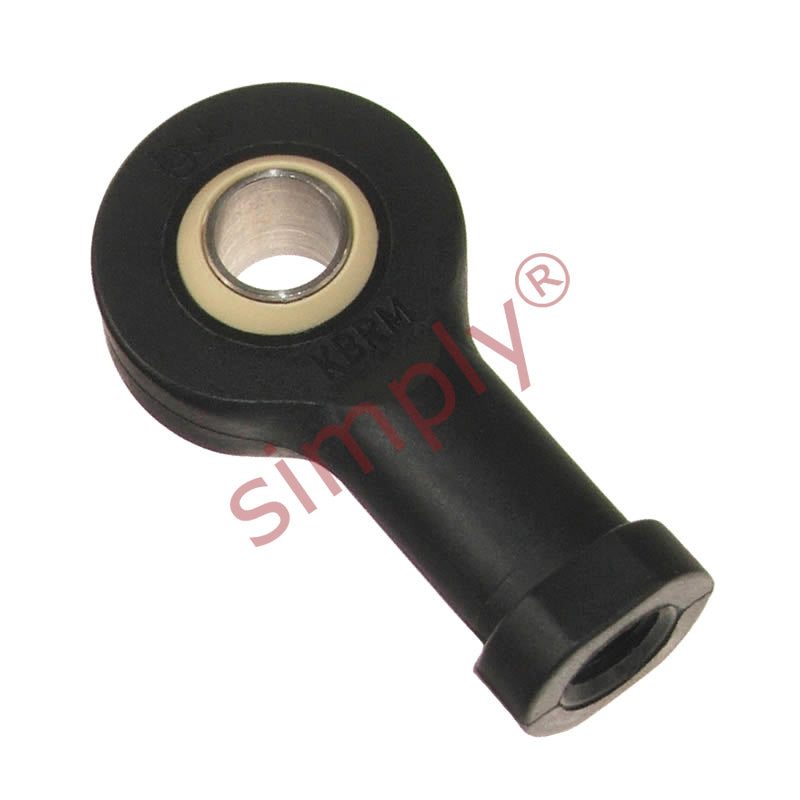

• igubal KBRM18MH Right Hand Female Plastic Rod End 18mm Bore M18x1.5 Thread with Metal Insert
1 1

SKU: KBRM-18.MH

igubal KBRM18MH Right Hand Female Plastic Rod End 18mm Bore M18x1.5 Thread with Metal Insert

igubal KBRM18MH Right Hand Female Plastic Rod End 18mm Bore M18x1.5 Thread with Metal Insert
€29,30 ex VAT
€29,30 ex VAT
Sale Sold out

In stock

Price Break
4+ €22,27
9+ €21,02
19+ €20,77
29+ €20,52
39+ €20,27
49+ €20,02
59+ €18,77
69+ €18,52
79+ €18,27
89+ €18,02
99+ €17,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M18x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
18mm
Technical
d1 18mm
d2 46mm
d3 M18x1.5
d4 25mm
d5 31mm
C1 16.5mm
B 23mm
h1 71mm
l3 32mm
l4 94mm
W SW27
Max pivot angle 23°
Max static tensile strength (short term) 4600 N
Max static tensile strength (long term) 2300 N
Max radial load (short term) 1600 N
Max radial load (long term) 800 N
Min thread depth 21mm
Max torque strength inside thread 45 Nm
Max torque through ball (standard) 45 Nm
Max torque through ball (MH) 150 Nm
Weight 55 g
