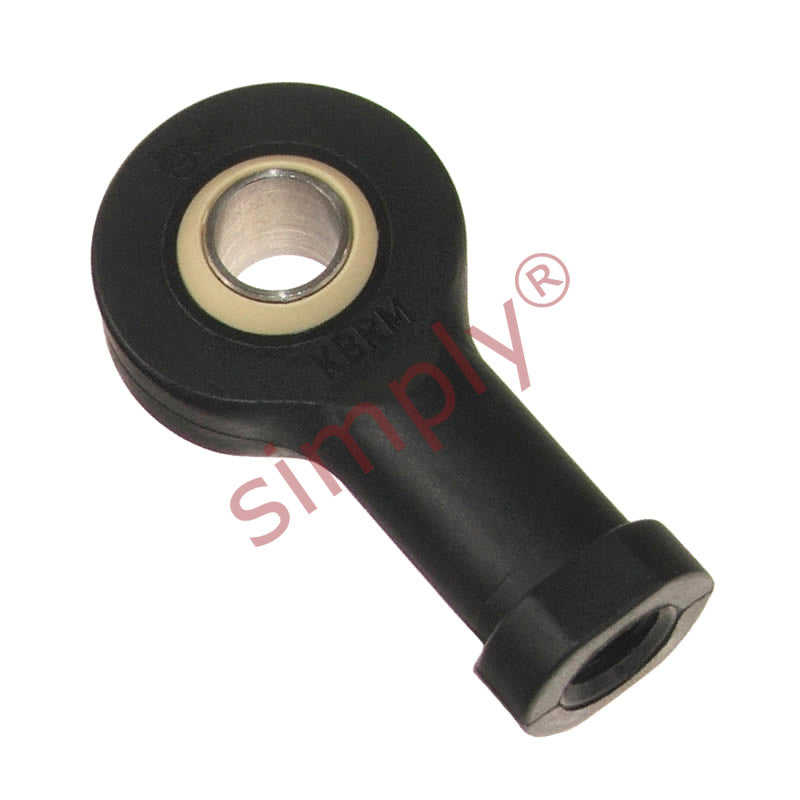

• igubal KBRM20MH Right Hand Female Plastic Rod End 20mm Bore M20x1.5 Fine Thread with Metal Insert
1 1

SKU: KBRM-20.MH.F

igubal KBRM20MH Right Hand Female Plastic Rod End 20mm Bore M20x1.5 Fine Thread with Metal Insert

igubal KBRM20MH Right Hand Female Plastic Rod End 20mm Bore M20x1.5 Fine Thread with Metal Insert
€16,48 ex VAT
€16,48 ex VAT
Sale Sold out

In stock

Price Break
4+ €12,52
9+ €11,82
19+ €11,68
29+ €11,54
39+ €11,39
49+ €11,25
59+ €10,55
69+ €10,41
79+ €10,27
89+ €10,13
99+ €9,85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_MH_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M20x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
20mm
Technical
d1 20mm
d2 50mm
d3 M20x1.5
d4 28mm
d5 34mm
C1 18mm
B 25mm
h1 77mm
l3 33mm
l4 102mm
W SW30
Max pivot angle 23°
Max static tensile strength (short term) 5400 N
Max static tensile strength (long term) 2700 N
Max radial load (short term) 2100 N
Max radial load (long term) 1050 N
Min thread depth 22mm
Max torque strength inside thread 60 Nm
Max torque through ball (standard) 55 Nm
Max torque through ball (MH) 200 Nm
Weight 73.5 g
