SKU: KBS12-INA

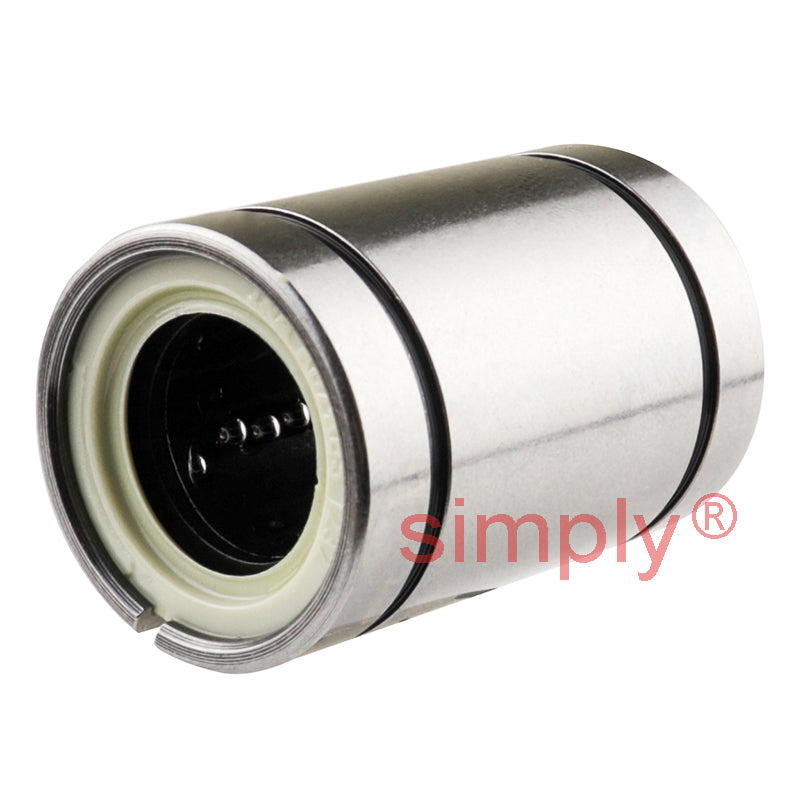

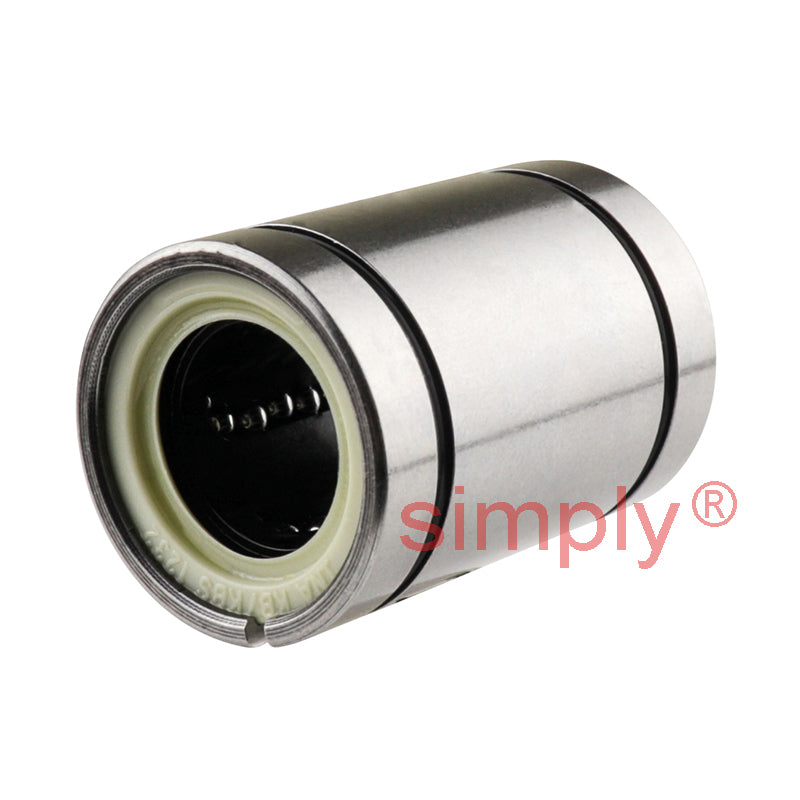

INA KBS12 Linear Ball Bushing 12x22x32mm
INA KBS12 Linear Ball Bushing 12x22x32mm
Regular price
€51,85
ex VAT
Regular price
Sale price
€51,85
ex VAT
In stock
Price Break
3+
€39,40
5+
€37,19
10+
€36,74
15+
€36,30
20+
€35,86
30+
€35,42
40+
€33,20
50+
€32,76
60+
€32,32
75+
€31,87
100+
€30,99
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Width:
- 32mm
Technical
Technical

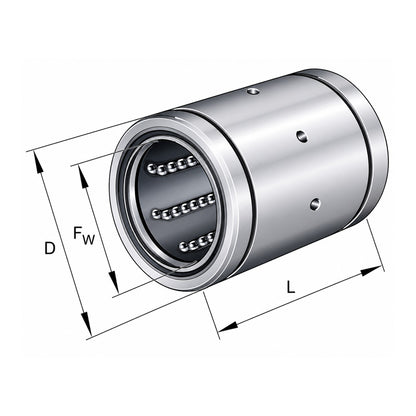

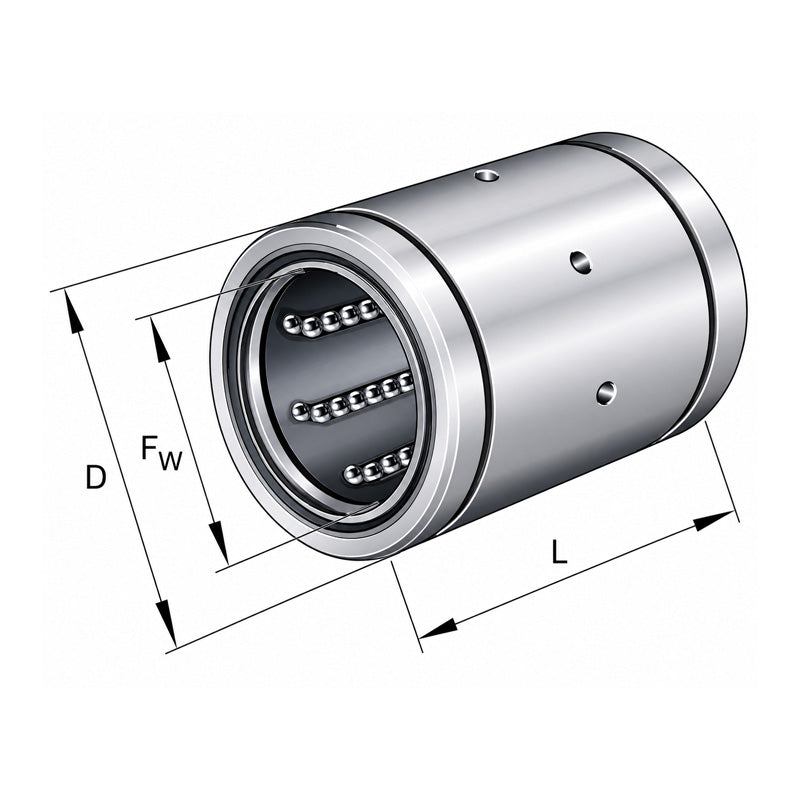

| Fw | 12mm |
|---|---|
| D | 22mm |
| L | 32mm |
| Numer of rows of balls | 5 |
| B3 | 1mm |
| BL2 | 1.3mm |
| DN | 21mm |
| L2 | 22.6mm |
| Mass | 0.04 kg |
| Basic dynamic load rating C min | 540 N |
| Basic static load rating C0 min | 385 N |
| Basic dynamic load rating C max | 640 N |
| Basic static load rating C0 max | 570 N |
