SKU: KBS16-INA
INA KBS16 Linear Ball Bushing 16x26x36mm
INA KBS16 Linear Ball Bushing 16x26x36mm
Regular price
€63,83
ex VAT
Regular price
Sale price
€63,83
ex VAT
In stock
Price Break
3+
€48,51
5+
€45,78
10+
€45,24
15+
€44,69
20+
€44,15
30+
€43,60
40+
€40,88
50+
€40,33
60+
€39,79
75+
€39,24
100+
€38,15
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm
Technical
Technical

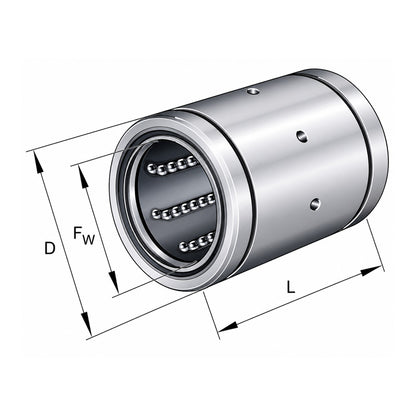

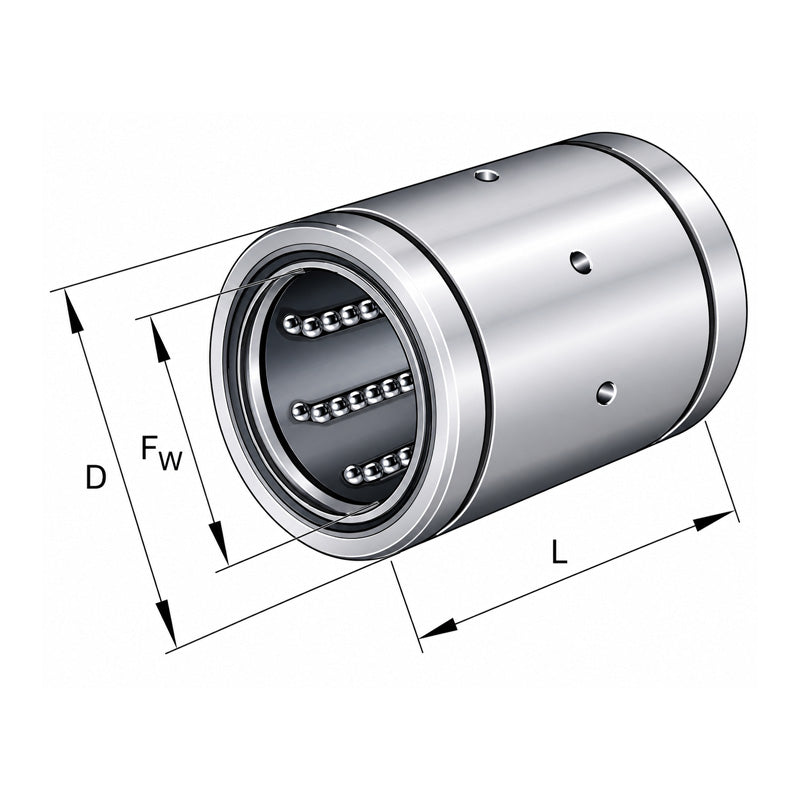

| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Numer of rows of balls | 5 |
| B3 | 1mm |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| Mass | 0.05 kg |
| Basic dynamic load rating C min | 710 N |
| Basic static load rating C0 min | 530 N |
| Basic dynamic load rating C max | 840 N |
| Basic static load rating C0 max | 780 N |
