SKU: KBS20-INA
INA KBS20 Linear Ball Bushing 20x32x45mm
INA KBS20 Linear Ball Bushing 20x32x45mm
Regular price
€74,00
ex VAT
Regular price
Sale price
€74,00
ex VAT
In stock
Price Break
3+
€56,24
5+
€53,08
10+
€52,45
15+
€51,82
20+
€51,18
30+
€50,55
40+
€47,39
50+
€46,76
60+
€46,13
75+
€45,50
100+
€44,23
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm
Technical
Technical

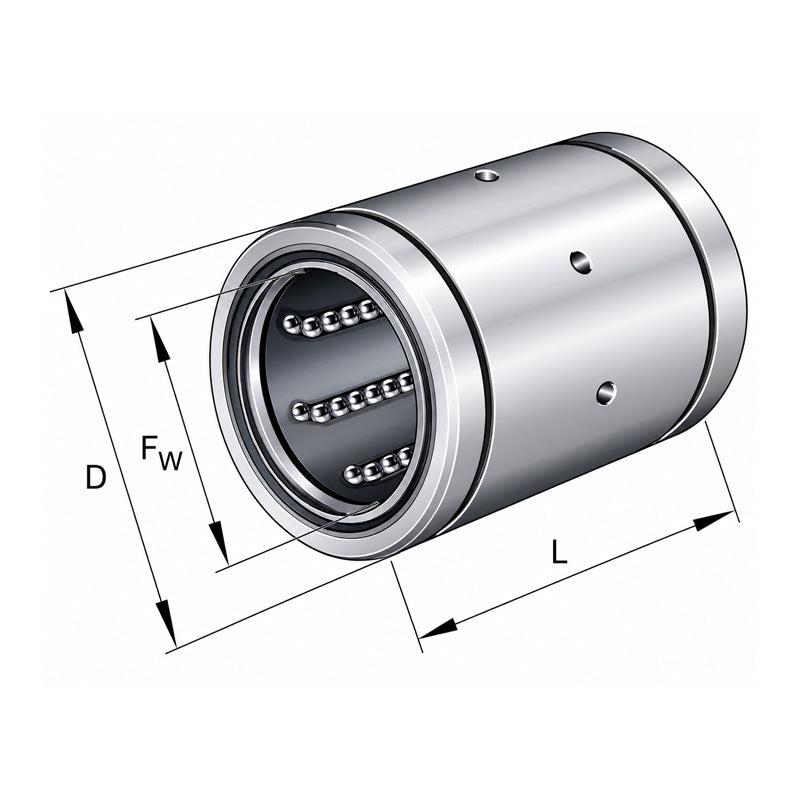

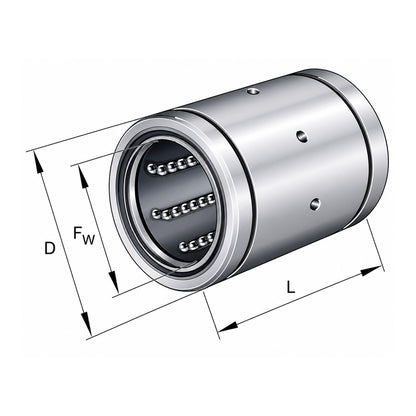

| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
