SKU: KBS20-PP-AS-INA

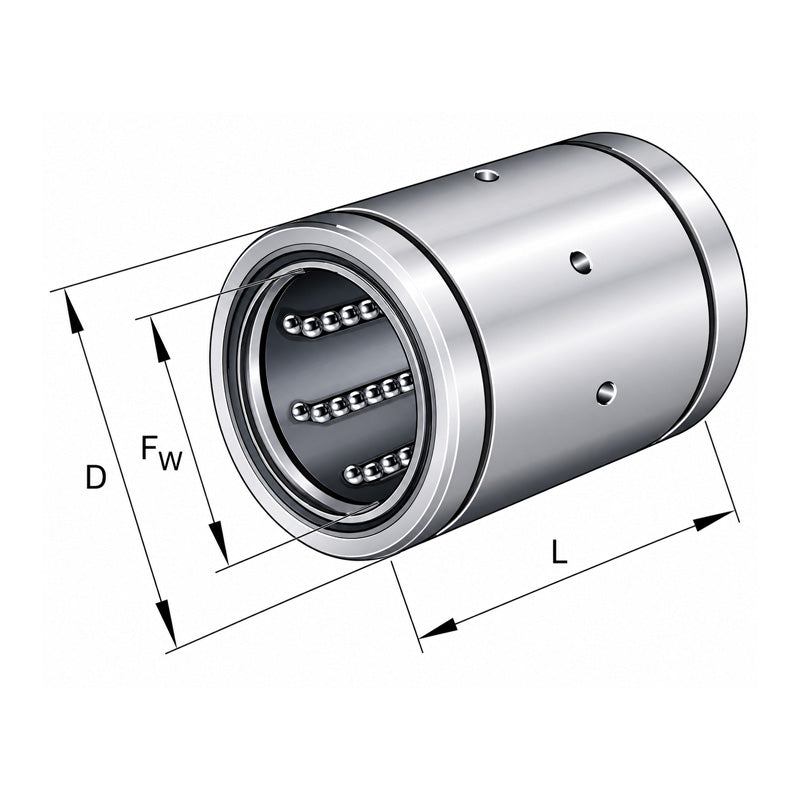

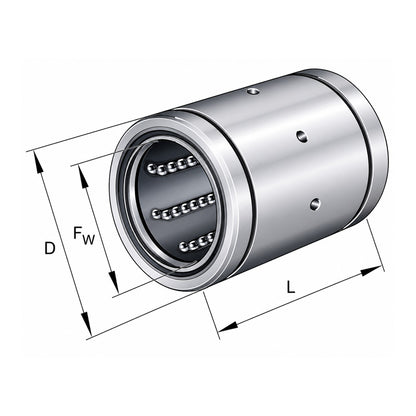

INA KBS20PPAS Relubricatable Linear Ball Bushing with Contact Seals 20x32x45mm
INA KBS20PPAS Relubricatable Linear Ball Bushing with Contact Seals 20x32x45mm
Regular price
€86,42
ex VAT
Regular price
Sale price
€86,42
ex VAT
In stock
Price Break
3+
€65,67
5+
€61,98
10+
€61,25
15+
€60,51
20+
€59,77
30+
€59,03
40+
€55,34
50+
€54,60
60+
€53,87
75+
€53,13
100+
€51,65
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 45mm
Technical
Technical

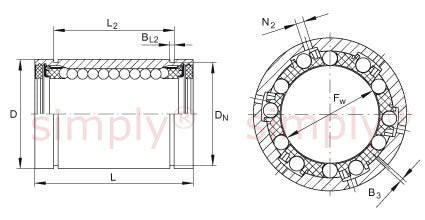

| Fw | 20mm |
|---|---|
| D | 32mm |
| L | 45mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.6mm |
| DN | 30.3mm |
| L2 | 31.2mm |
| Mass | 0.09 kg |
| Basic dynamic load rating C min | 1570 N |
| Basic static load rating C0 min | 1230 N |
| Basic dynamic load rating C max | 1660 N |
| Basic static load rating C0 max | 1570 N |
