SKU: KBS30-PP-INA

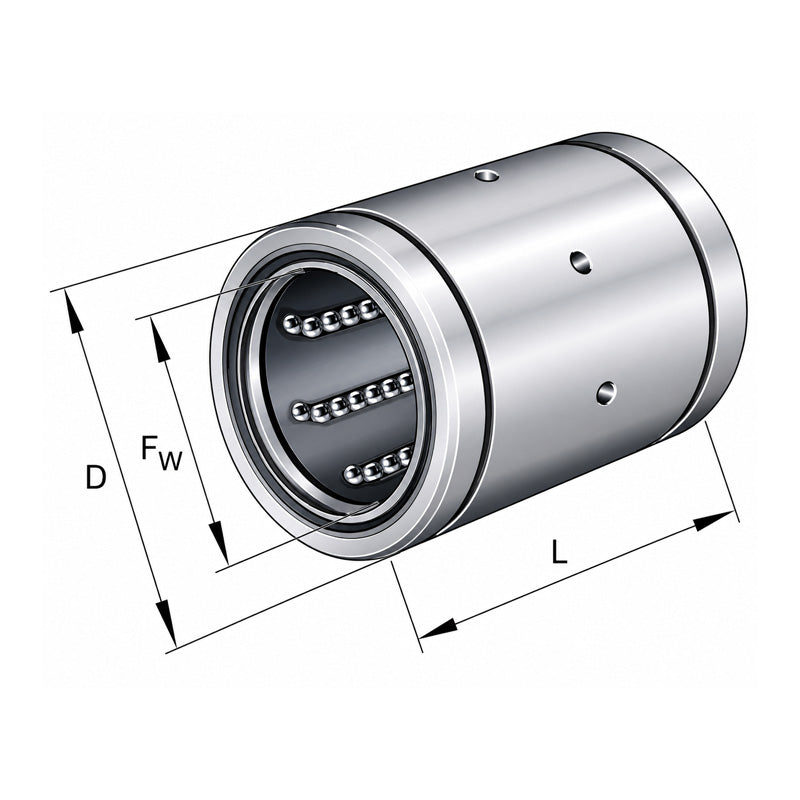

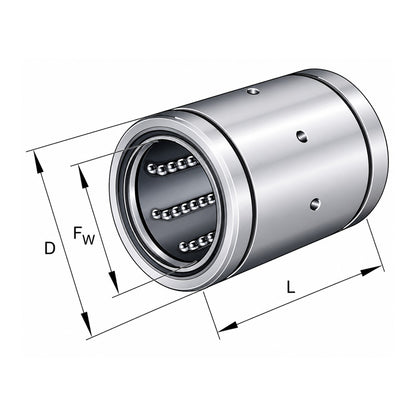

INA KBS30PP Linear Ball Bushing with Contact Seals 30x47x68mm
INA KBS30PP Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
€116,83
ex VAT
Regular price
Sale price
€116,83
ex VAT
In stock
Price Break
3+
€88,79
5+
€83,80
10+
€82,80
15+
€81,80
20+
€80,81
30+
€79,81
40+
€74,82
50+
€73,82
60+
€72,82
75+
€71,83
100+
€69,83
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
