SKU: KBS40-PP-INA

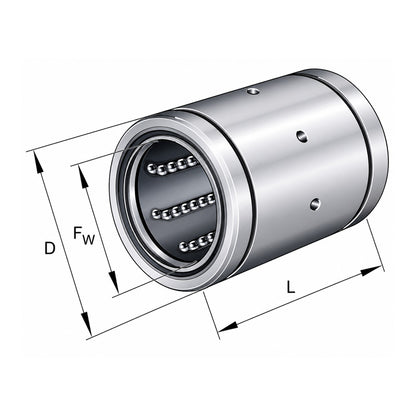

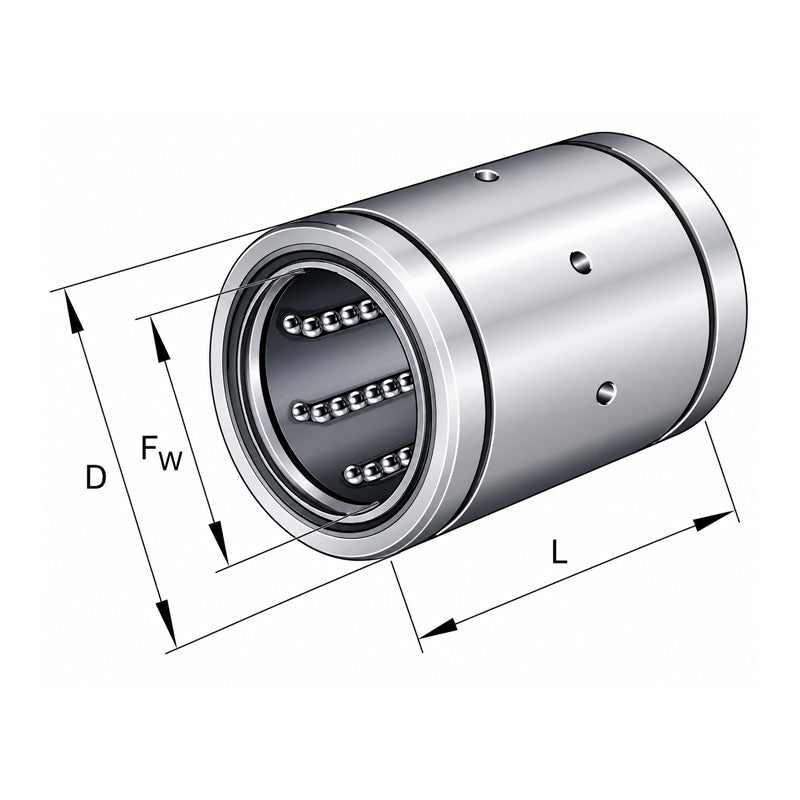

INA KBS40PP Linear Ball Bushing with Contact Seals 40x62x80mm
INA KBS40PP Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
€151,04
ex VAT
Regular price
Sale price
€151,04
ex VAT
In stock
Price Break
3+
€114,78
5+
€108,33
10+
€107,05
15+
€105,76
20+
€104,47
30+
€103,18
40+
€96,73
50+
€95,44
60+
€94,15
75+
€92,86
100+
€90,28
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical

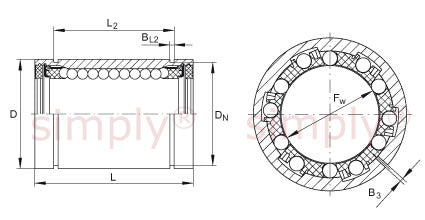

| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
