SKU: KBS50-INA
INA KBS50 Linear Ball Bushing 50x75x100mm
INA KBS50 Linear Ball Bushing 50x75x100mm
Regular price
€229,55
ex VAT
Regular price
Sale price
€229,55
ex VAT
In stock
Price Break
3+
€174,45
5+
€164,65
10+
€162,69
15+
€160,73
20+
€158,77
30+
€156,81
40+
€147,01
50+
€145,05
60+
€143,09
75+
€141,13
100+
€137,21
Quantity
Couldn't load pickup availability
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 100mm
Technical
Technical

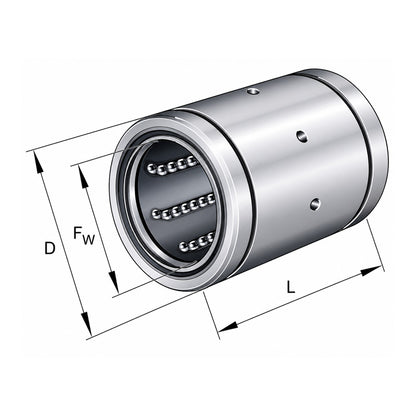

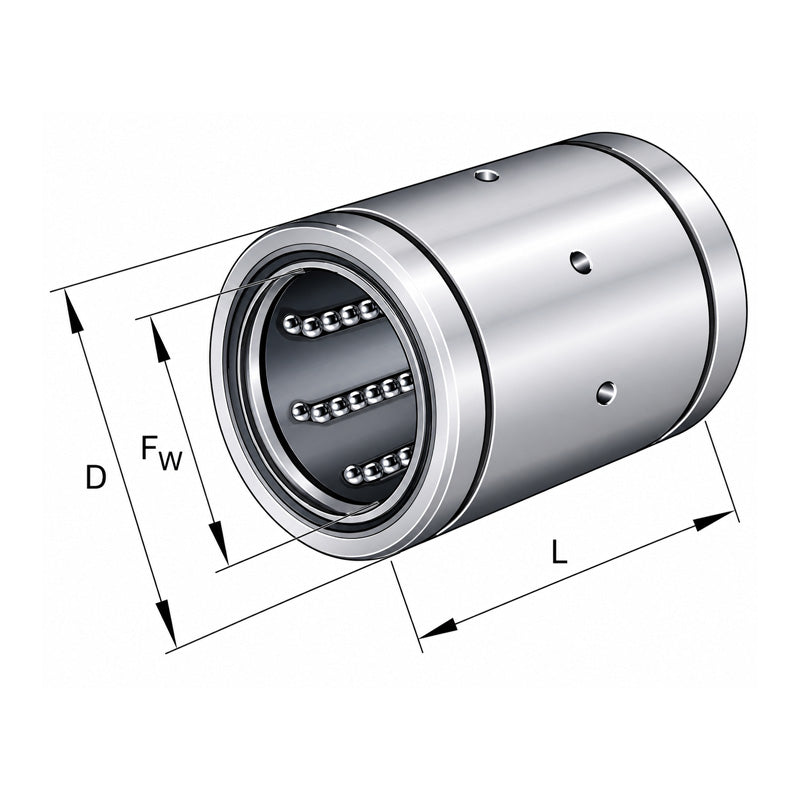

| Fw | 50mm |
|---|---|
| D | 75mm |
| L | 100mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.65mm |
| DN | 72mm |
| L2 | 77.3mm |
| Mass | 1 kg |
| Basic dynamic load rating C min | 8700 N |
| Basic static load rating C0 min | 6300 N |
| Basic dynamic load rating C max | 9200 N |
| Basic static load rating C0 max | 8000 N |
